獨家設計，產品獨一無二

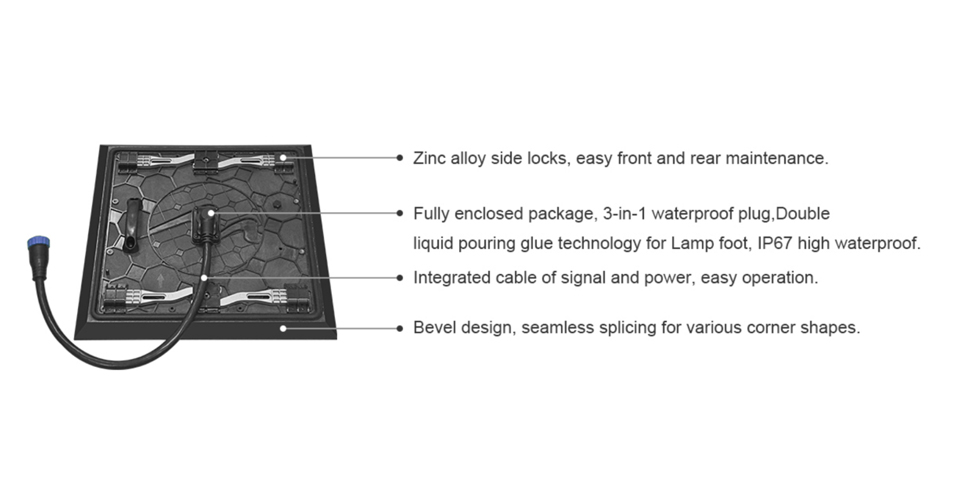

M-Shine 獨家設計，外觀簡潔，模組側邊鎖免螺絲，拆裝方便
低功耗、低熱量

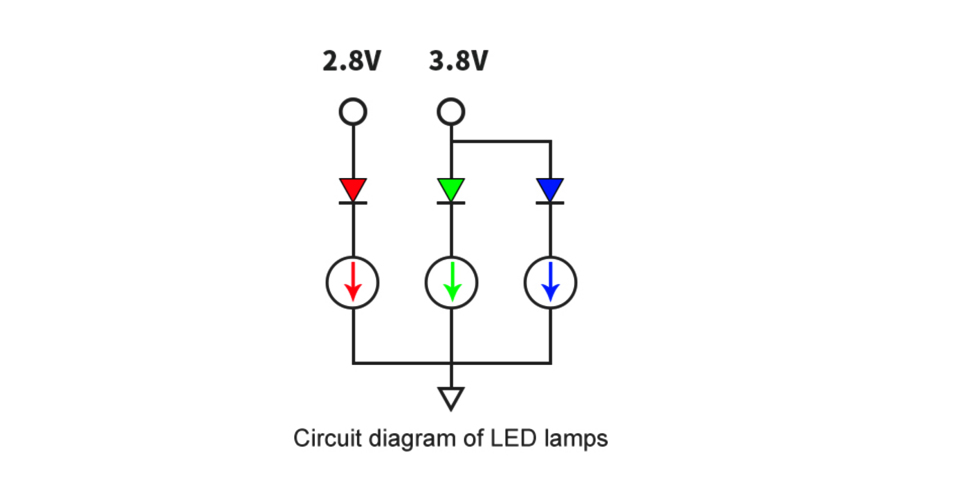

采用共陰技術，RBG分壓供電，大幅提高能效

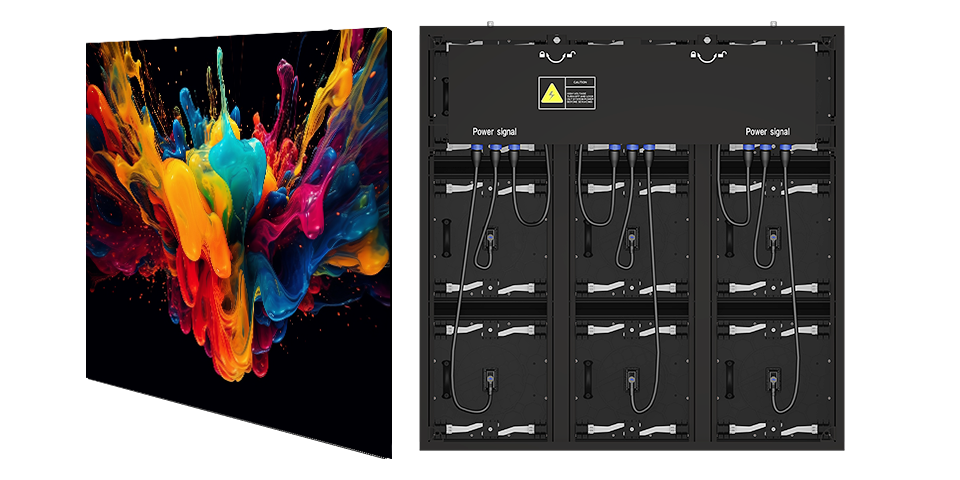

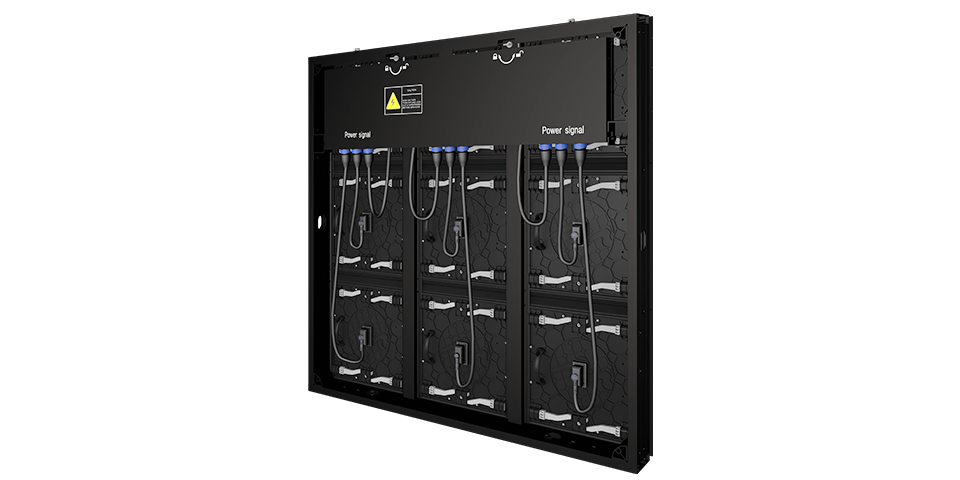

前后維護
2種維護方式，省時省力，維護方便
100%防水模塊及箱體

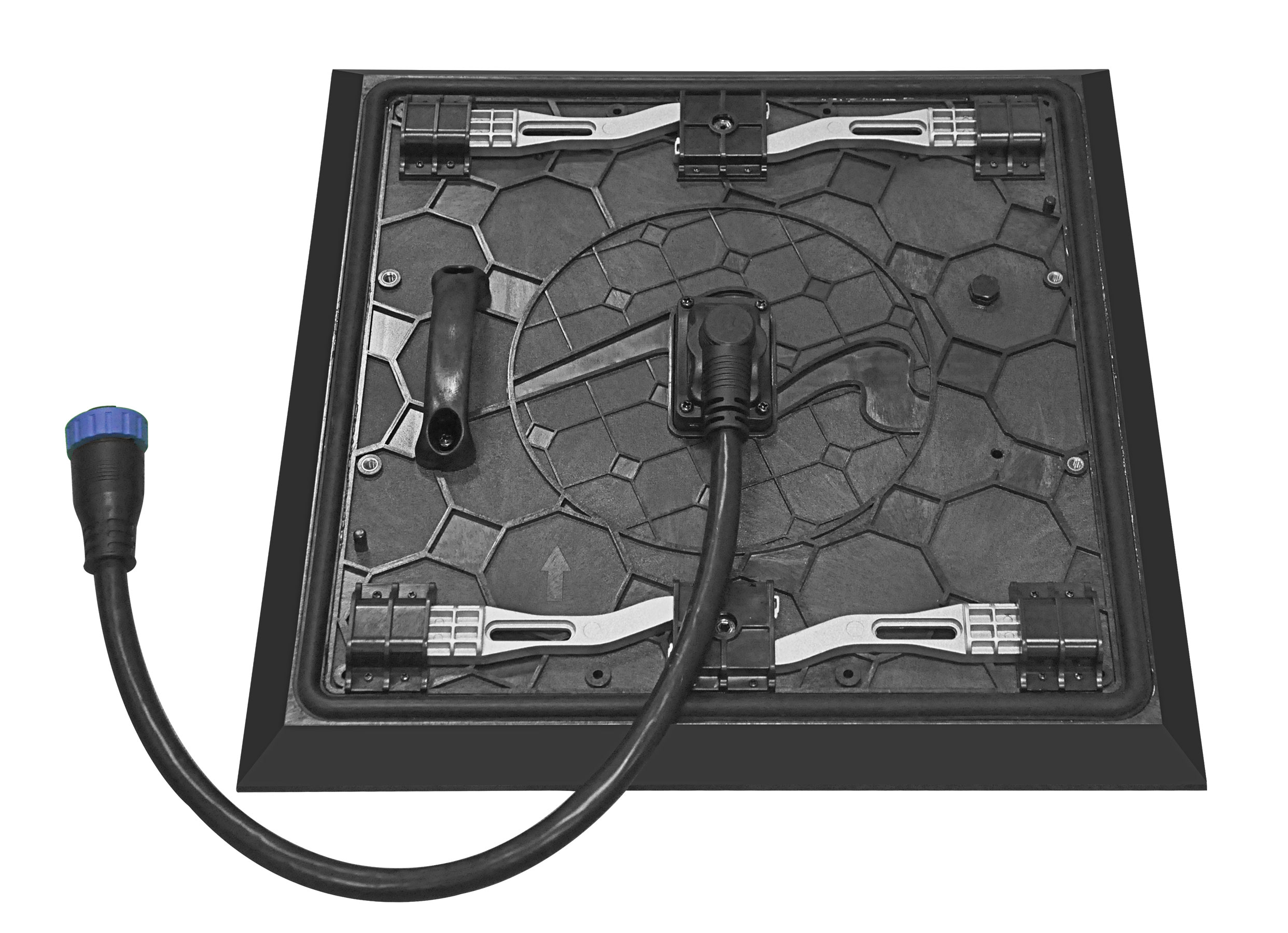

全封閉模組，三合一防水插頭，燈腳雙液灌膠工藝，IP67卓越防水
斜角設計，快速鎖緊
鋅合金側鎖，信號線電源線一體化，斜角設計，實現轉角設計無縫拼接
安全穩定，使用壽命長
低功耗低熱量，更好保護電子元器件，屏幕運行更穩定，整屏更耐用
Rock Plus Series - 100% Waterproof 960 * 960mm Outdoor Front Service Pixel Pitch(mm) 5.33 P6.67 P8 P10 Pixel Density(dots/㎡) 35156 22500 15625 10000 Brightness(cd/㎡) 5500cd 5500cd 5500cd 6000cd LED Lamp 1921 SMD2727 Cabinet Size(mm) 960 * 960 or customized Module Size(mm) 320 * 320 Module Resolution(dots) 60*60 48*48 40*40 32*32 Viewing Distance(m) ≧5m ≧6m ≧8m ≧10m Scan 1/6 scan 1/6 scan 1/4 scan 1/2 scan Module Maximum Power(W) 54W 54W 54W 54W Power distribution(W/cabinet) 570w 570w 570w 570w Actual Max.Power Consumption (W/cabinet) 500w 500w 500w 500w Average Power Consumption (W/cabinet) 200w 200w 200w 200w Die-casting aluminum Cabinet Weight (KG/cabinet) 25 25 25 25 Iron Cabinet Weight(KG/cabinet) 46KG 46KG 50kg 50kg Cabinet Sharing Universal cabinet for all above pixels Angle Splicing Support Cabinet Material Profile Aluminium Pixel Composition 1R1G1B Operating Input Voltage(V) Separate power supply for red and green/blue lights，R:2.8V, GB:3.8V(Mainly 3.8V) Gray Scale ≧14bits Brightness Adjustment 0~255 Refresh Rate Constant Current IC 1920/High Brush IC 3840 Refresh Frame Frenquncy 60Hz Maintenance Front/Rear Cabinet IP IP65 Module IP Front IP67 & Back IP65 Continuous Use Time >72h Life Span 100,000h MTBF >10,000h Blind Spot Rate <0.01% Operating Temperature -20℃～+50℃(Below -20 degrees could be customized) Operating Humidity Outdoor 10%～90%
固裝
首頁固裝
Rock-Plus磐石系列
全防水戶外前維護LED顯示屏
尺寸：960*960mm及定制
像素間距：P5.33/P6.67/P8/P10
共陰節能
100%防水

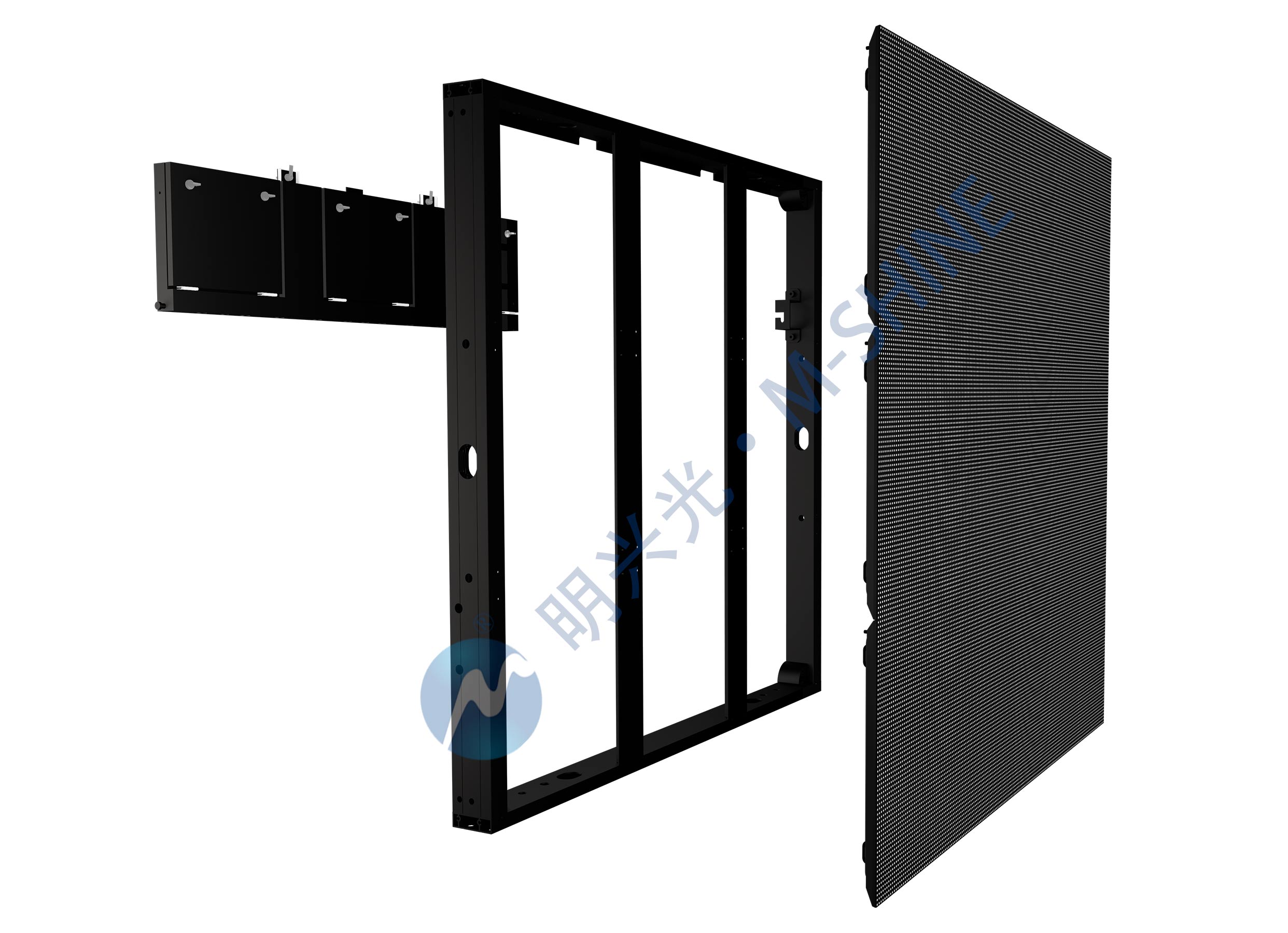

45°斜邊設計模組，實現無縫拼接
明興光獨家設計，產品獨一無二
應用領域：建筑外墻、建筑屋頂、戶外廣告、戶外標牌等
