Mercury水星系列

戶外小間距LED顯示屏

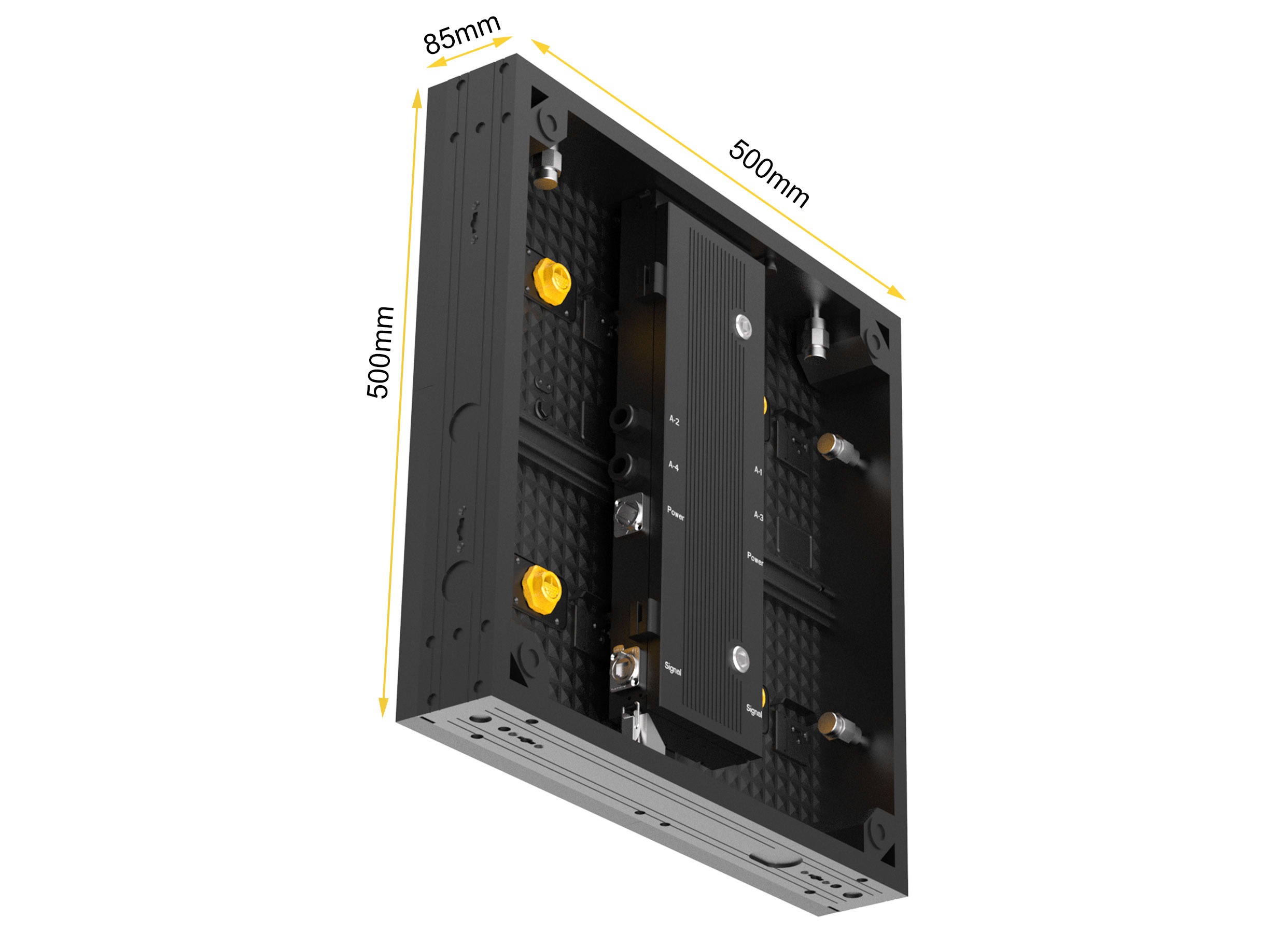

經典尺寸:500×500mm

像素間距:P2.5mm

定制箱體尺寸

全方位前后維護

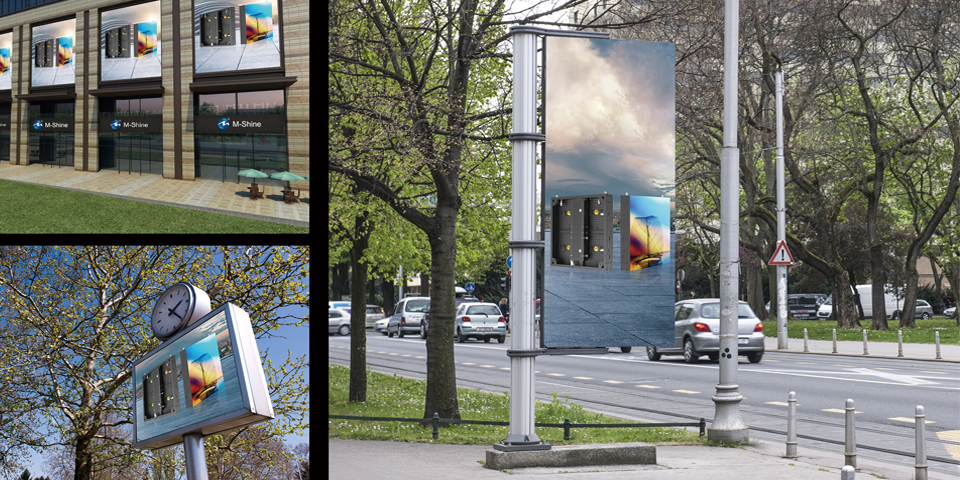

應用領域:商業街、交通系統、戶外廣告牌等

立即聯系我們

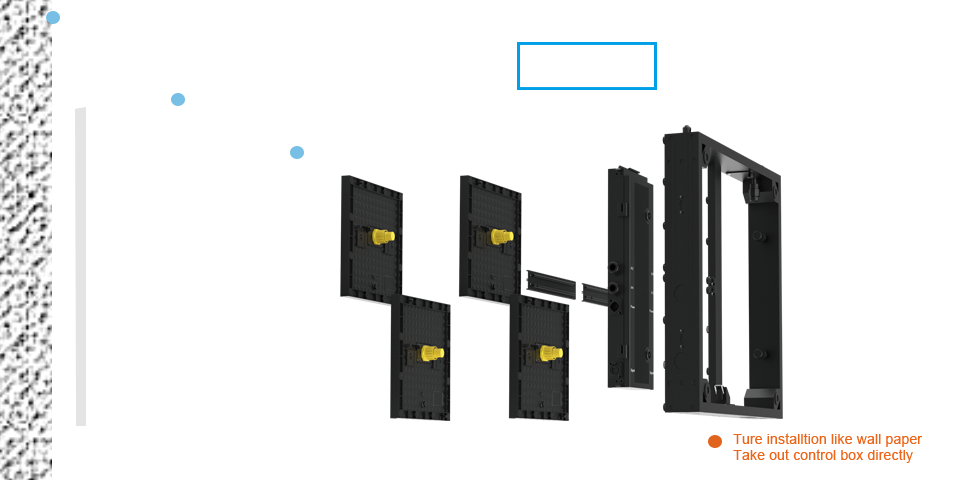

  • 全前維護

    全前維護設計,貼墻式安裝

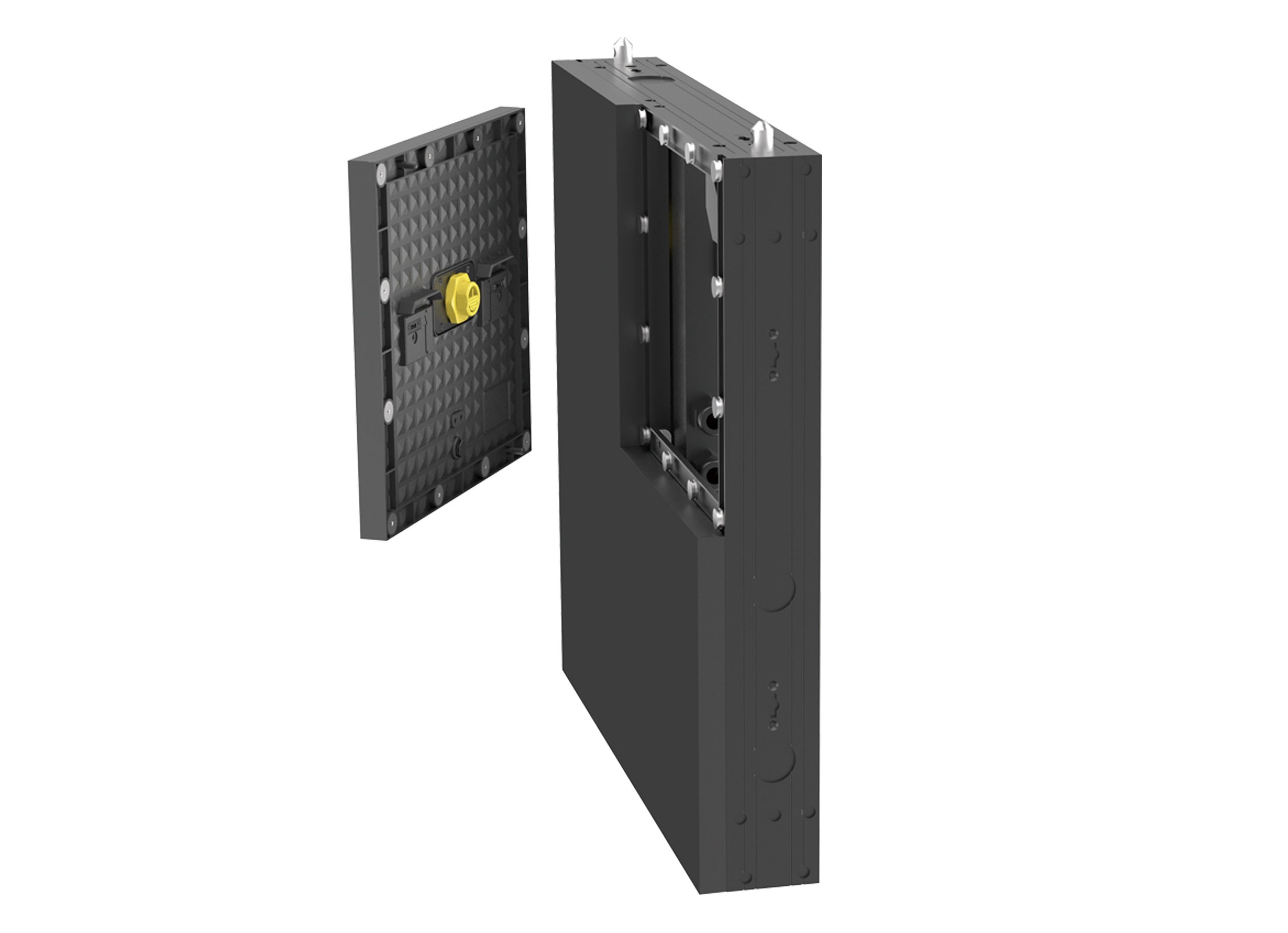

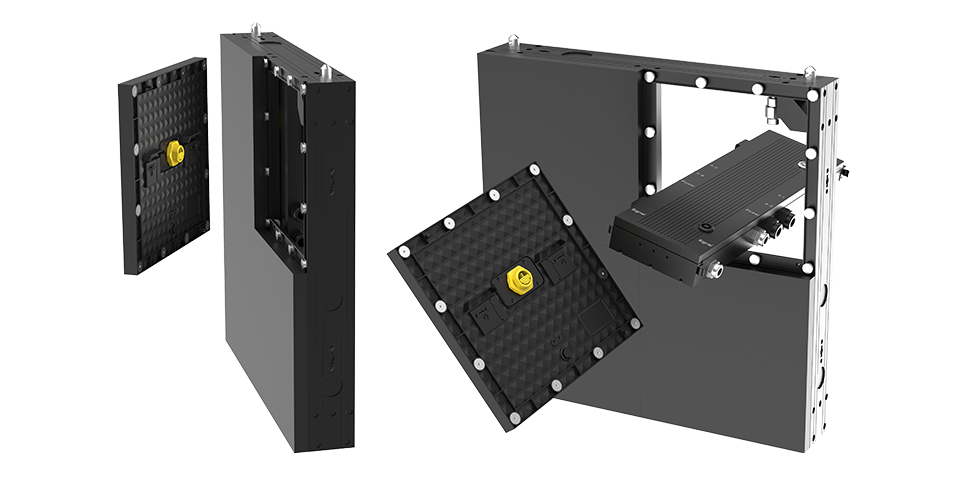

    一體化設計

    模組+控制盒,模塊化設計

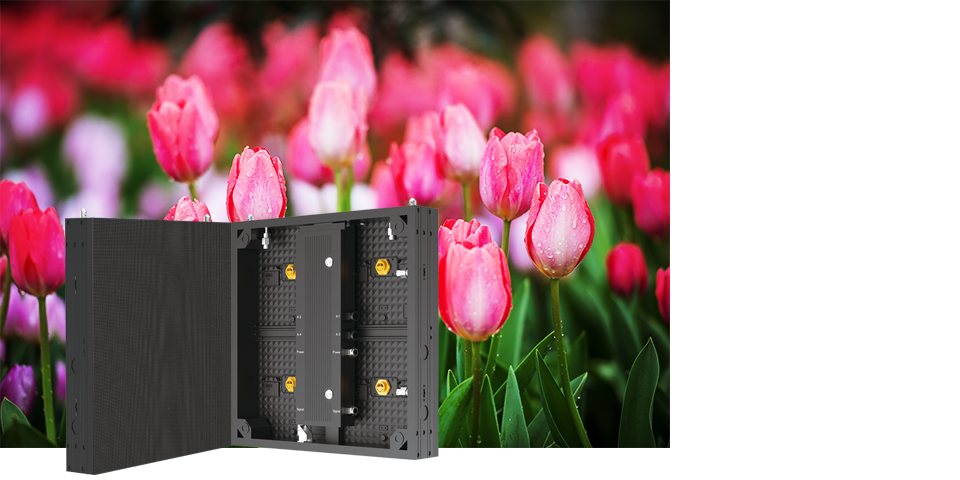

    高對比度

    高對比度 6000:1

    高亮度

    超高亮度5500nits戶外小間距

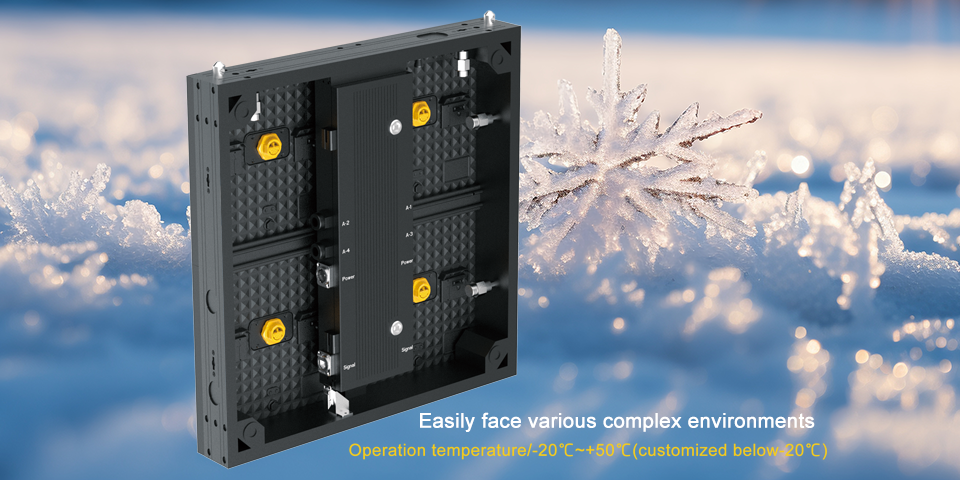

    耐高低溫

    可承受 -20°C 至 50°C 的極端天氣

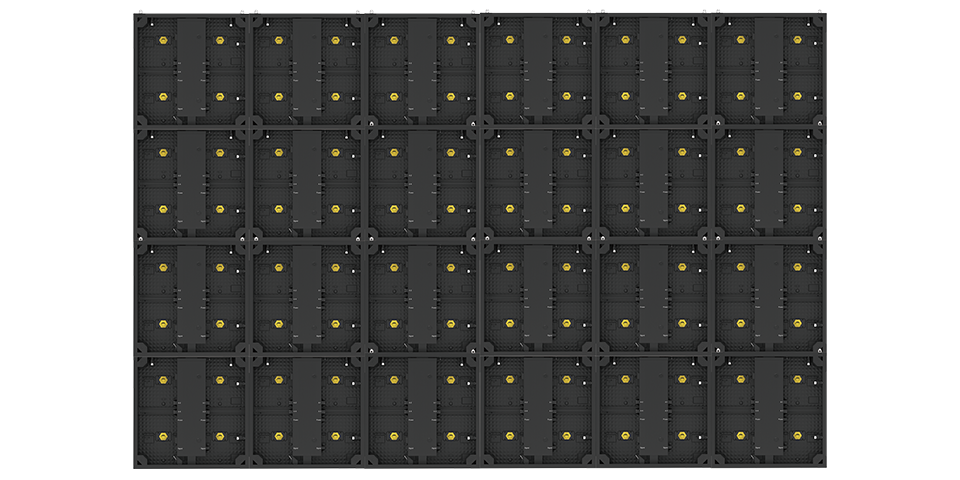

    輕松定制不同尺寸

    輕松定制不同的箱體尺寸,以適應各種屏幕尺寸

    定制尺寸

    型材鋁箱體,支持靈活的箱體尺寸定制

  • Mercury Series - Outdoor Fine Pitch LED displays
    Pixel Pitch(mm)2.5mm
    Cabinet SizeW500*H1000*85MMW500*H500*85MM
    Pixel Density(dots/㎡)160000
    Brightness(cd/㎡)3000-5500cd adjustable
    LED LampOutdoor SMD1515
    Module Size250*250mm
    Module Resolution(dots)100*100
    Average Power Consumption(W/㎡)250W
    Average Power Consumption(W/㎡)720w
    Viewing Distance(m)≧2.5m
    Scan1/25 scan
    Product Weight(KG/㎡)36 kg40kg
    LED Driving MethodHigh Refresh Constant Current,ICND2165B/SM16380
    Module Thickness20mm
    Maintenance WayFront/Rear
    PackageModule/Cabinet Packed Alone
    Pixel Composition1R 1G 1B
    Operating Input Voltage(V)4.5-5V
    Contrast Ratio4000:1
    Gray Scale≥14bits
    Brightness AdjustmentManual 256 Levels
    Refresh Frame Frenquncy60HZ
    Refresh Rate3840HZ
    Ingress ProtectionIP65
    Transmission DistanceHSYV-5E≦130MMultimode Fiber≦500MSinglemode Fiber≦10KM
    Continuous Use Time>72h
    Life Span100,000h
    MTBF>10,000h
    Blind Spot Rate<0.01%
    Operating Temperature-20℃~+50℃(Customized below—20℃)
    Operating HumidityOutdoor 10%~85%
