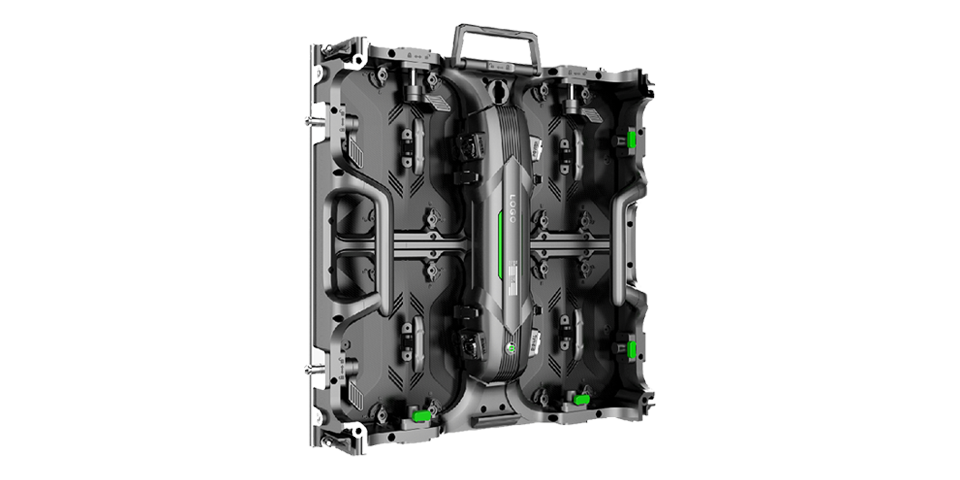

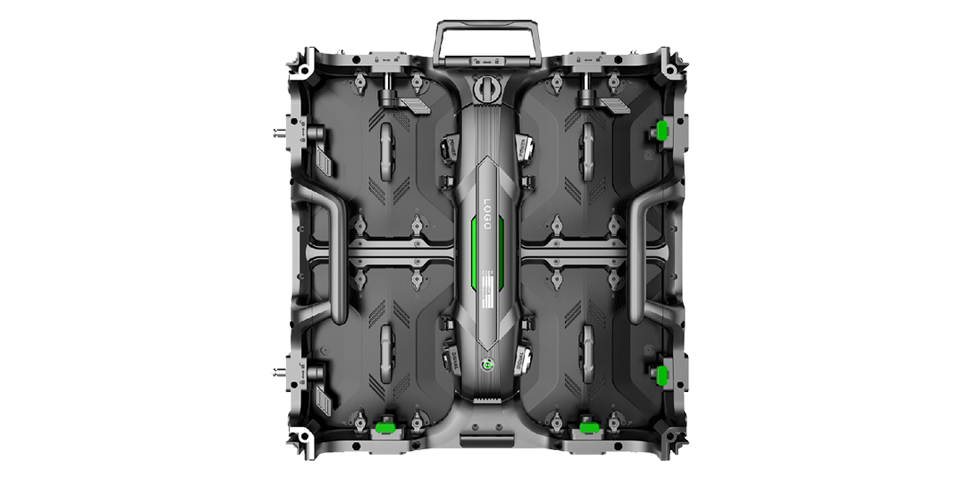

Magic魔法系列

LED租賃屏(戶內 & 戶外)

尺寸:500x500mm/500x1000mm

像素間距:

P1.953/ P2.604/ P2.976/ P3.91/P4.81mm(戶內)

P2.604/P2.976/P3.91/P4.81mm(戶外)

快速組裝和拆卸

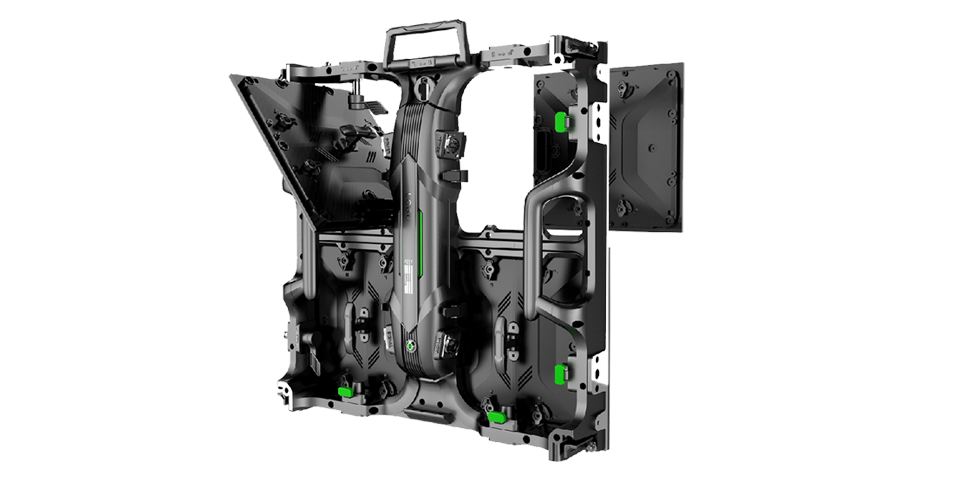

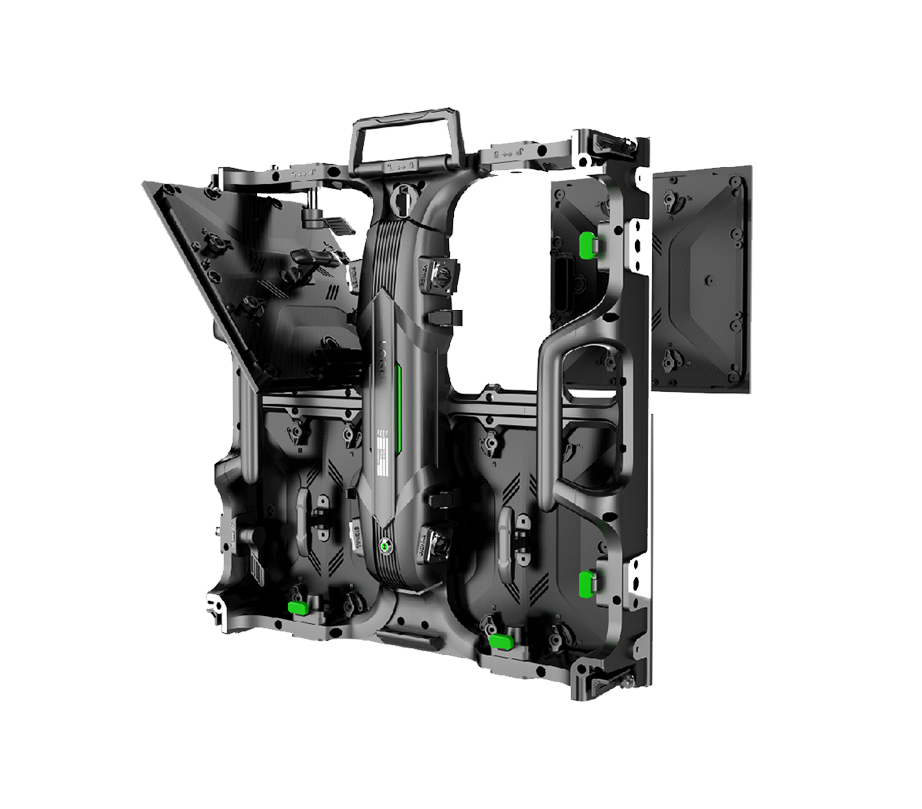

支持前/后維護

支持戶內/戶外使用

應用領域:舞臺、音樂節、演唱會、電子競技比賽、展覽

立即聯系我們

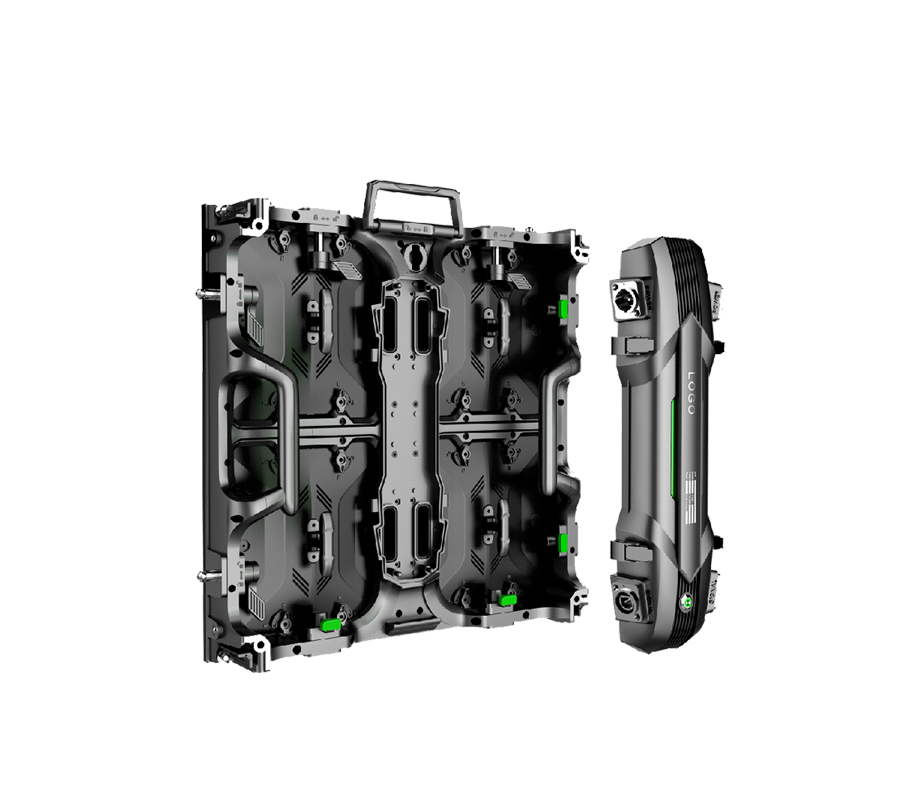

  • 模塊化設計

    多功能且適應性強的結構,可快速組裝,可定制,滿足各種場景需求

    靈活性

    Magic系列LED租賃屏適應性強,非常適合音樂會、大型會議和展覽等活動,其模塊化設計可實現快速拆裝,滿足不同場地的需求

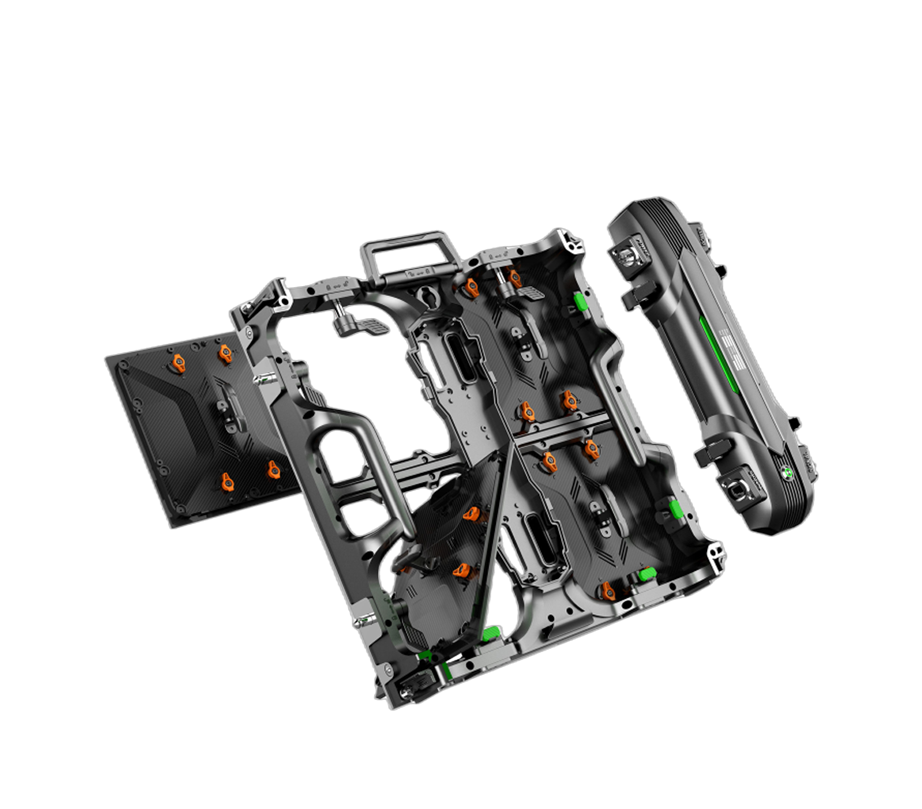

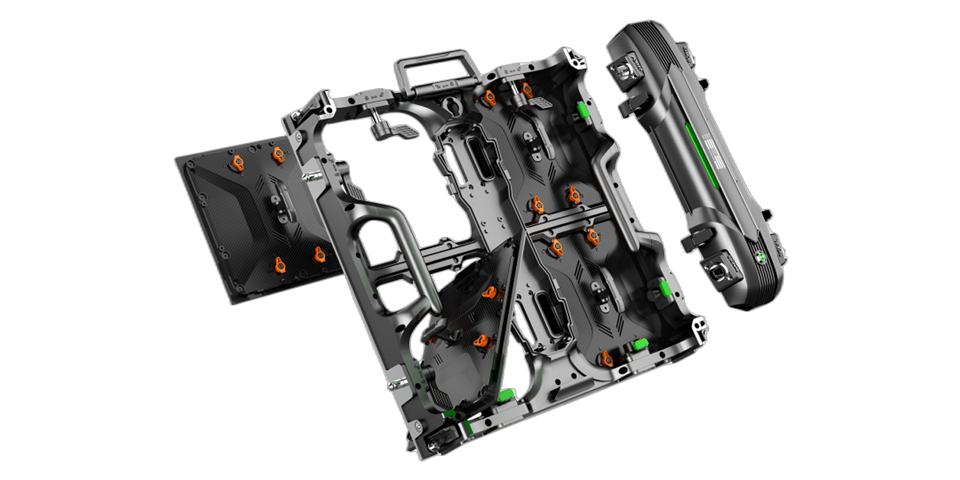

    快速安裝

    Magic系列LED租賃屏可快速組裝和拆卸,非常適合短期活動,其模塊化設計和輕量化結構確保高效安裝,節省時間和人力

    可定制性

    Magic系列LED租賃屏可根據特定活動需求進行定制,包括尺寸和形狀。其多功能性可提供個性化解決方案,從而增強活動的整體效果

    高可靠性

    Magic系列LED租賃屏采用優質材料,即使在具有挑戰性的環境中也能提供可靠的性能,其耐用性確保在整個活動期間持續提供高質量的顯示,為無縫執行提供可靠的支持

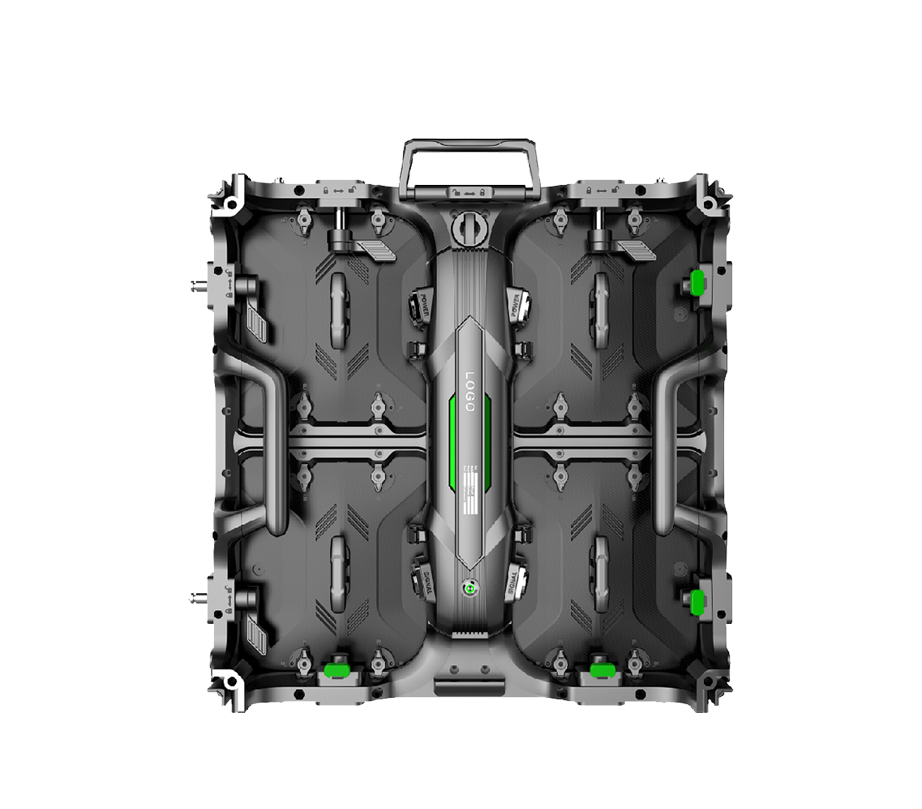

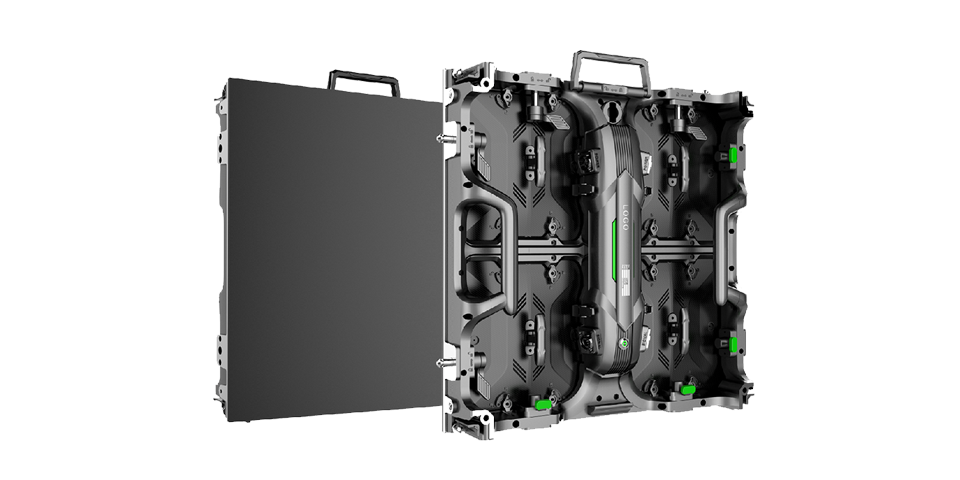

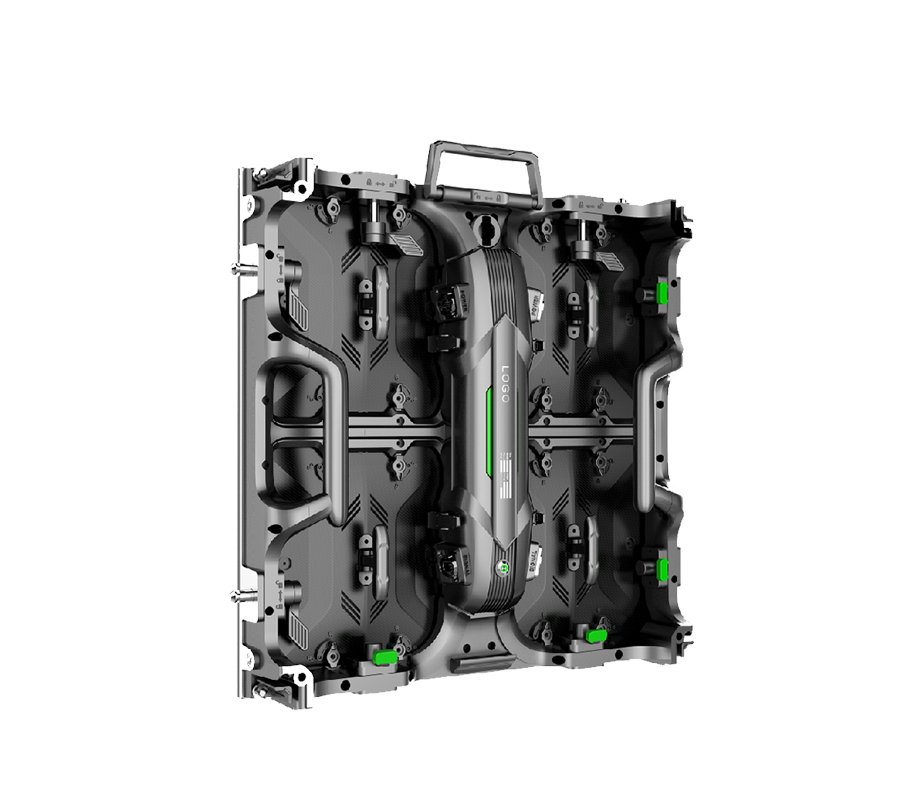

  • Magic Series - Rental LED Screen (Indoor & Outdoor)
    Pixel Pitch(mm)P1.953P2.604P2.976P3.91P4.81P2.604P2.976P3.91P4.81
    Module Size(mm)250 * 250mm250 * 250mm
    Brightness(cd/㎡)600cd800cd1000cd800cd800cd3500-4000cd
    LED Lamp1515/14151515/14151515/14152121/20202121/20201415141519211921
    Module Resolution(dots)128*12896*9684*8464*6452*5296*9684*8464*6452*52
    Viewing Distance(m)≧2.5m≧2.5m≧2.9m≧3.9m≧4.8m≧2.6m≧2.9m≧3.9m≧4.8m
    Scan1/32 scan1/32 scan1/28 scan1/16 scan1/13 scan1/32    scan1/21    scan1/16    scan1/13 scan
    LED Driving MethodConstant CurrentConstant Current
    Module Maximum Power (W)352840
    Max.Power Consumption (W/㎡)600500720
    Average Power Consumption (W/㎡)210180260
    Power distribution(W/㎡)740W(500*500 cabinet) / 552W(500*1000 cabinet)1100W
    Product Thickness77mm84mm(With bottom shell and cabinet)
    Product Weight(KG/Cabinet)4.6KG(500*500) / 9KG(500*1000)4.6KG(500*500) / 9KG(500*1000)
         Curve Radian(outer arc)A single box can be adjusted between -5°and +5°with radian lockA single box can be adjusted between    -5°and +5°with radian lock
    Module and HUB board ConnectionConnection Without CableConnection Without Cable
    Anti-drop Module DesignAnti-drop locks between the module and cabinetAnti-drop locks between the module and cabinet
    Operating Input Voltage(V)4.6-5V4.6-5V
    Gray Scale13bits13bits
    Brightness Adjustment256 Brightness Levels256 Brightness Levels
    Refresh Rate1920/38401920/3840
    Refresh Frame Frenquncy60HZ60HZ
    Cabinet MaterialDie-casting Aluminum CabinetDie-casting Aluminum Cabinet
    Maintenance WayFront/Rear(Both/Either One)Front/Rear(Both/Either One)
    Ingress ProtectionIP40IP54
    Continuous Use Time>72h>72h
    Life Span100,000h100,000h
    MTBF>10,000h>10,000h
    Blind Spot Rate<0.01%<0.01%
    Operating Temperature-20℃~+50℃(Below -20 degrees could be customized)
    Operating HumidityIndoor 10%~60%Outdoor 10%~90%
