Crystal水晶系列

戶內固裝LED透明屏

尺寸:1000x500mm/ 1000x1000mm

像素間距:P2.6-5.2/ P3.91-7.81/ P5.21-10.42/ P10.42-10.42

高透明度,最高70%

輕巧纖薄

高亮度,可達5500nits/㎡

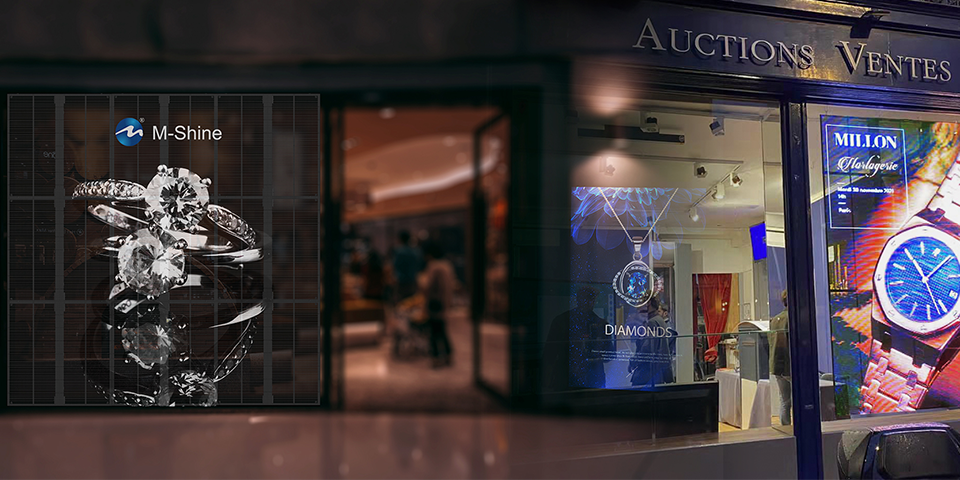

應用領域:購物中心、連鎖店、舞臺裝飾、廣告媒體等


立即聯系我們

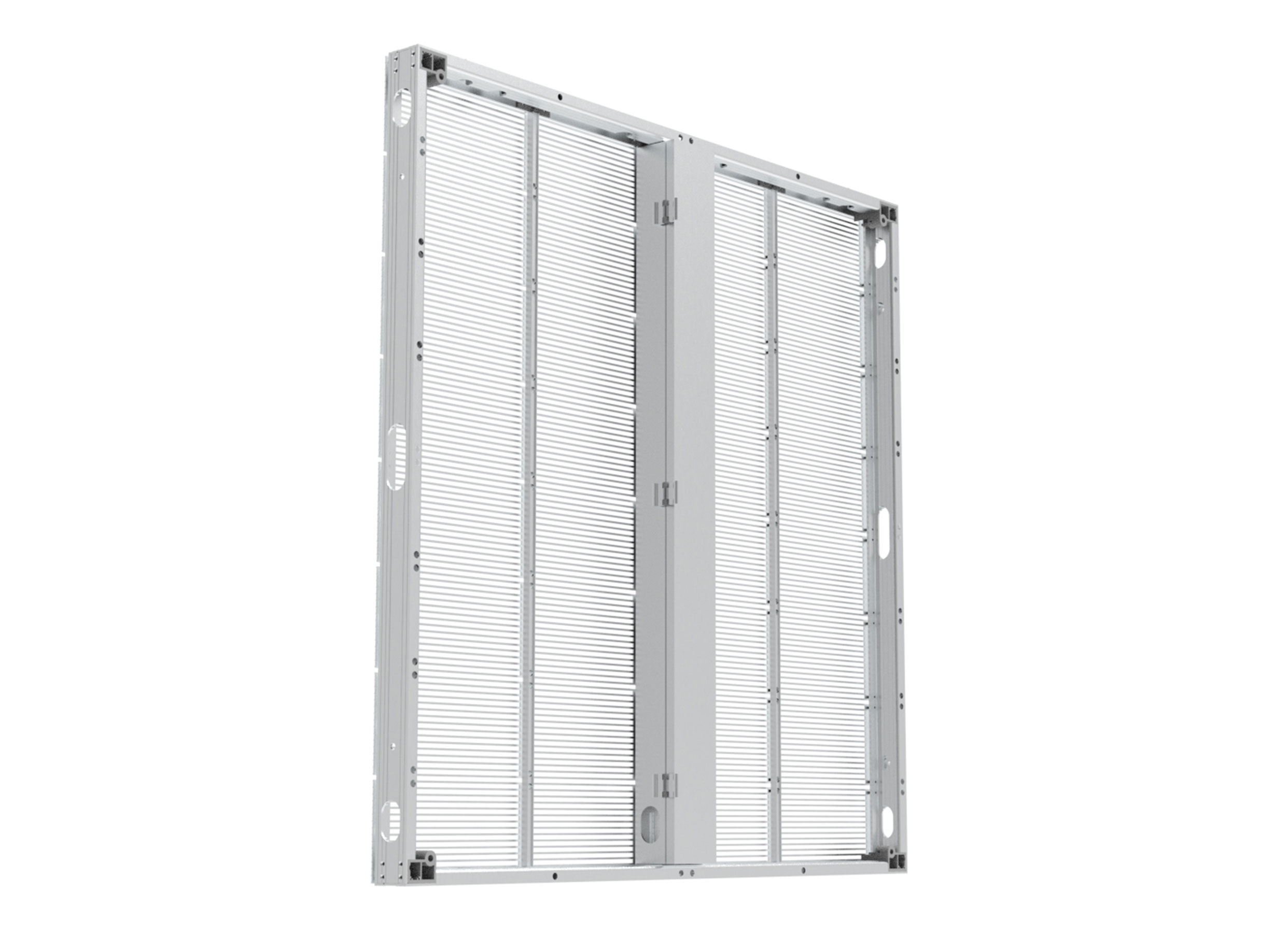

  • 超薄輕巧

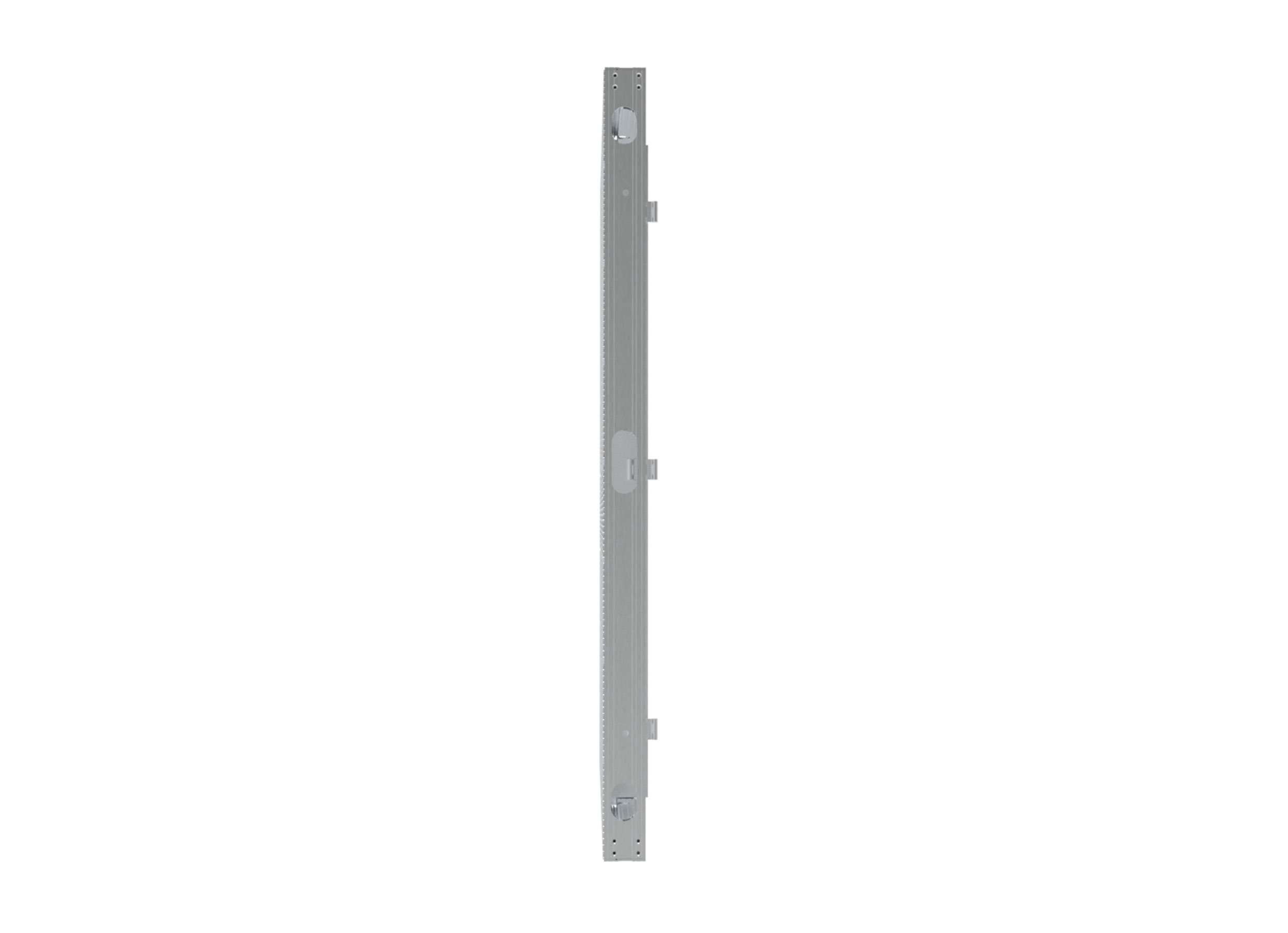

    箱體厚度:80mm,重量:9.8kg/㎡,易于搬運

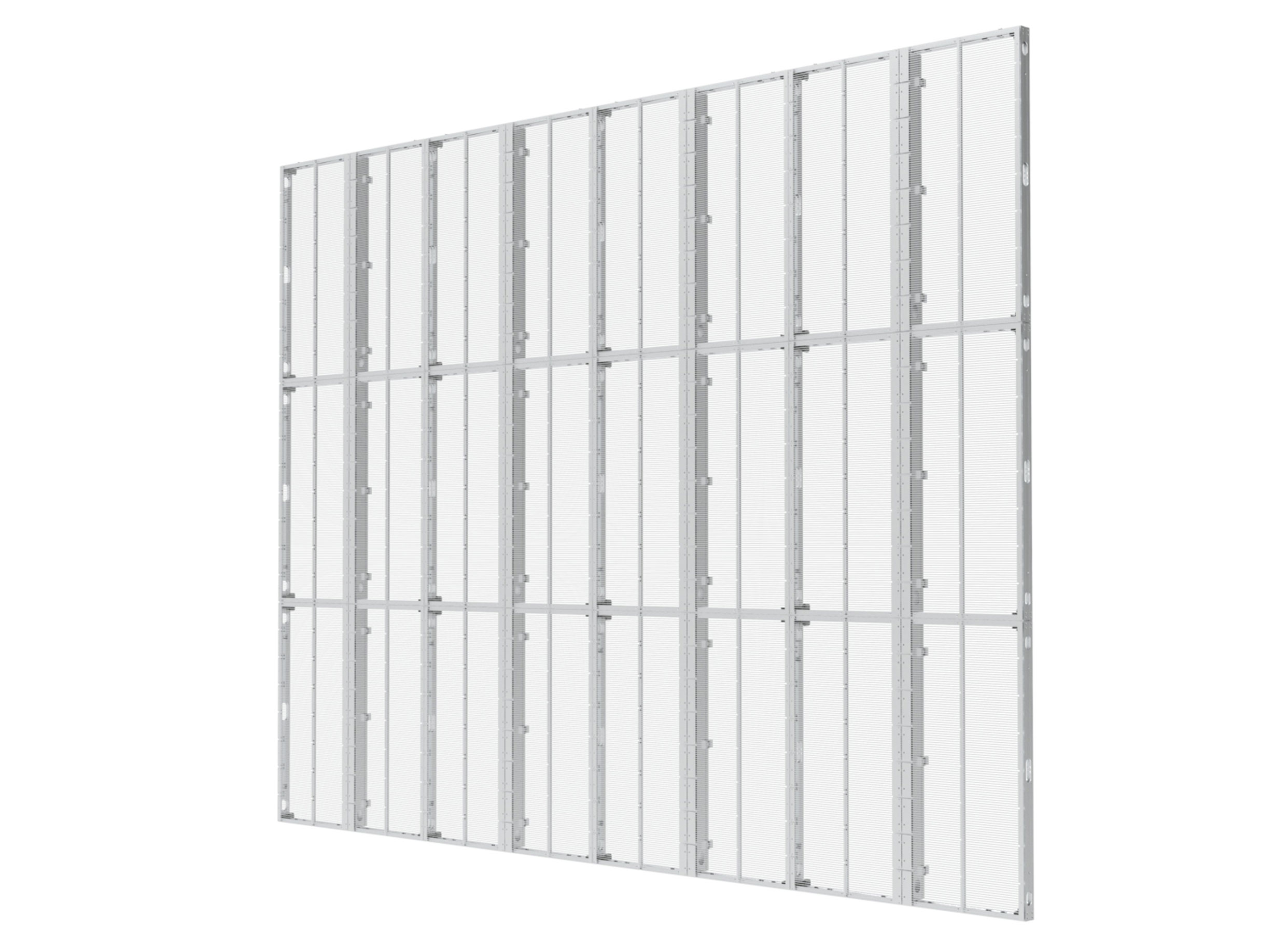

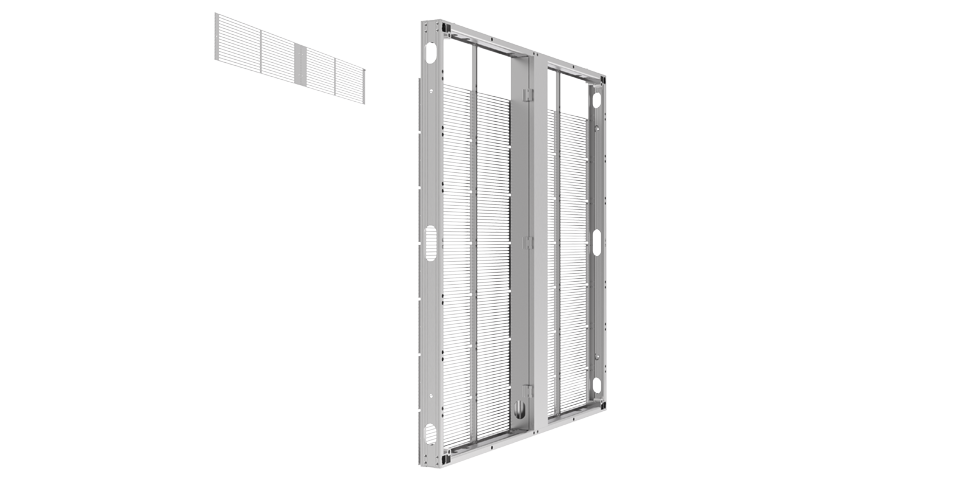

    模塊化組合,安裝簡便

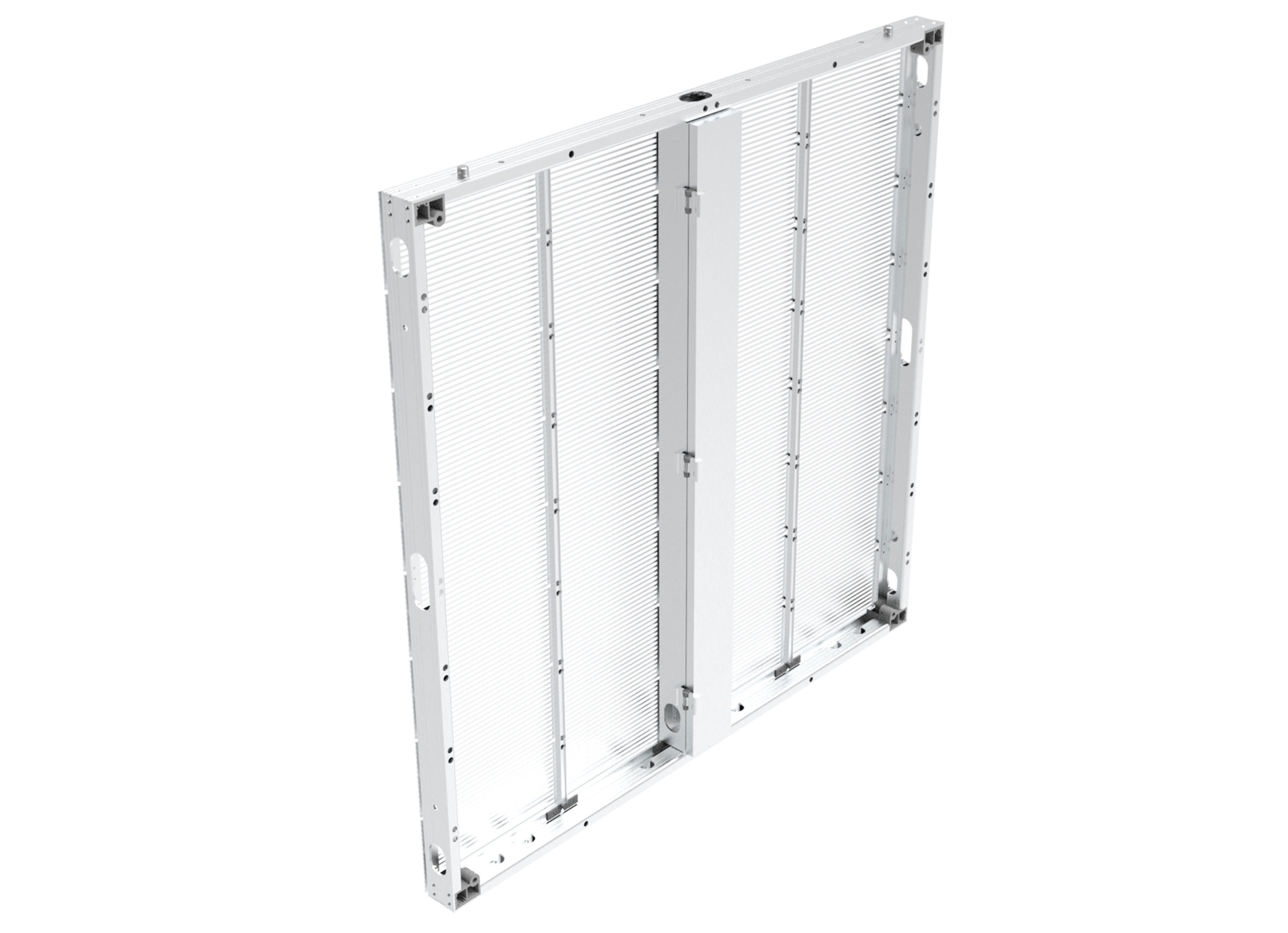

    模塊化設計,箱體組裝安裝方便

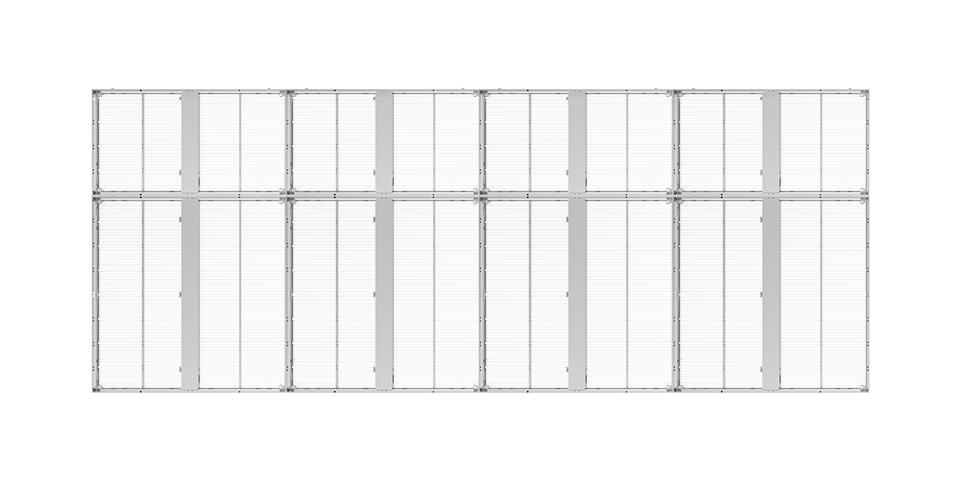

    不同尺寸自由拼接,充分利用場地

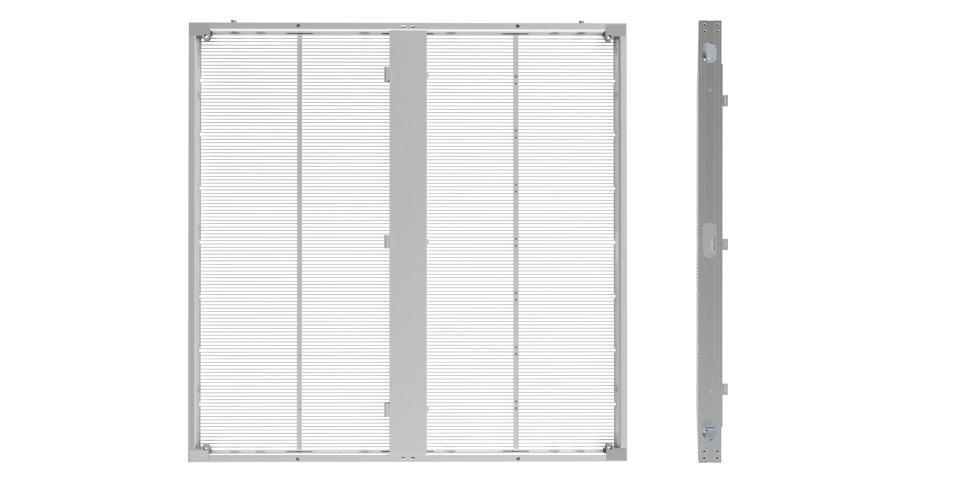

    經典1000*1000mm和1000*500mm尺寸自由拼接

    透視

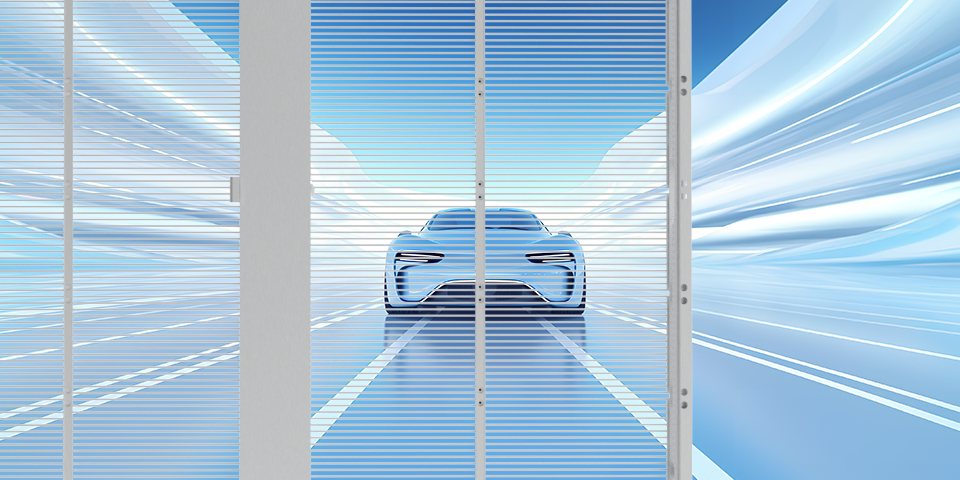

    透光率65%-70%,隨像素間距變化,對玻璃幕墻采光透視影響不大

    高亮度

    5500nits/㎡高亮度,使屏幕在陽光直射下也能保持好的性能

    靈活安裝

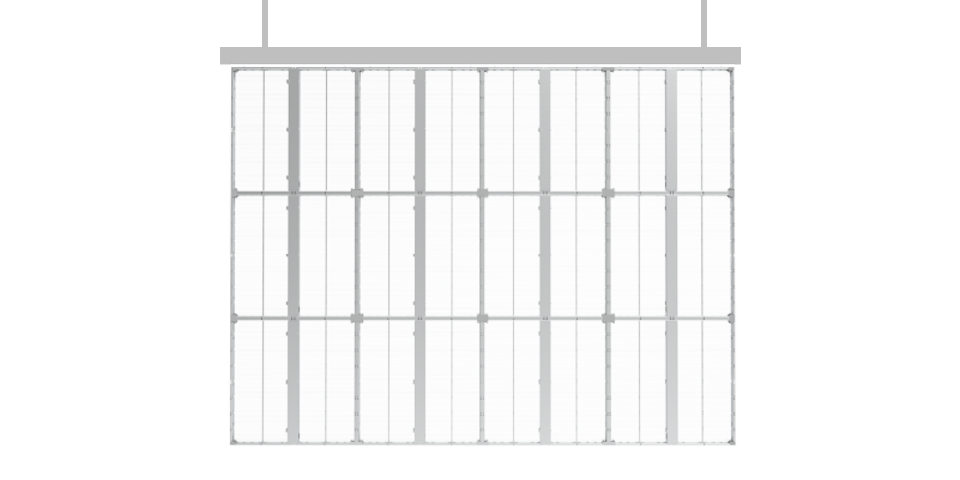

    支持多種安裝方式,壁掛式/懸掛式

  • Crystal Series - Fixed Indoor Transparent LED
    Pixel Pitch(mm)2.6*5.2mm3.9*7.8mm7.8*7.8mm5.2*10.4mm10.4*10.4mm15.625*15.625mm
    Pixel Density(dots/㎡)7372832768163841843292164096
    Brightness(cd/㎡)1200-5000cd1200-5000cd2000-5000cd5000cd5000cd5000cd
    LED LampSMD1921SMD2727SMD3535
    Cabinet Size(mm)1000*1000 or customized
    Module Size(mm)500*125
    Module Resolution(dots)192*18128*1664*1696*1248*1232*8
    Cabinet Resolution(dots)384*192256*128128*128192*9696*9664*64
    Max.Power Consumption(W/㎡)800W
    Average Power Consumption(W/㎡)280W
    Transparency Rate80%72%70%52%
    Viewing Distance(m)≧3m≧4m≧8m≧5m≧10m≧15m
    Driving Method1/12 Scan1/8 Scan1/4 Scan1/4 Scan1/2 ScanStatic State
    Module Weight(KG/sheet)0.2kg
    Product Weight(KG/㎡)10kg
    Product Color CustomizationSupport
    Maintenance WayFront/Rear
    Operating Input Voltage(V)4.5-5V
    Gray Scale≧14bits
    Brightness Adjustment256 Brightness Levels
    Refresh Frame Frenquncy60HZ
    Refresh Rate3840Hz(All products can reach)
    Ingress ProtectionIP31
    Continuous Use Time>72h
    Life Span100,000h
    MTBF>10,000h
    Blind Spot Rate<0.01%
