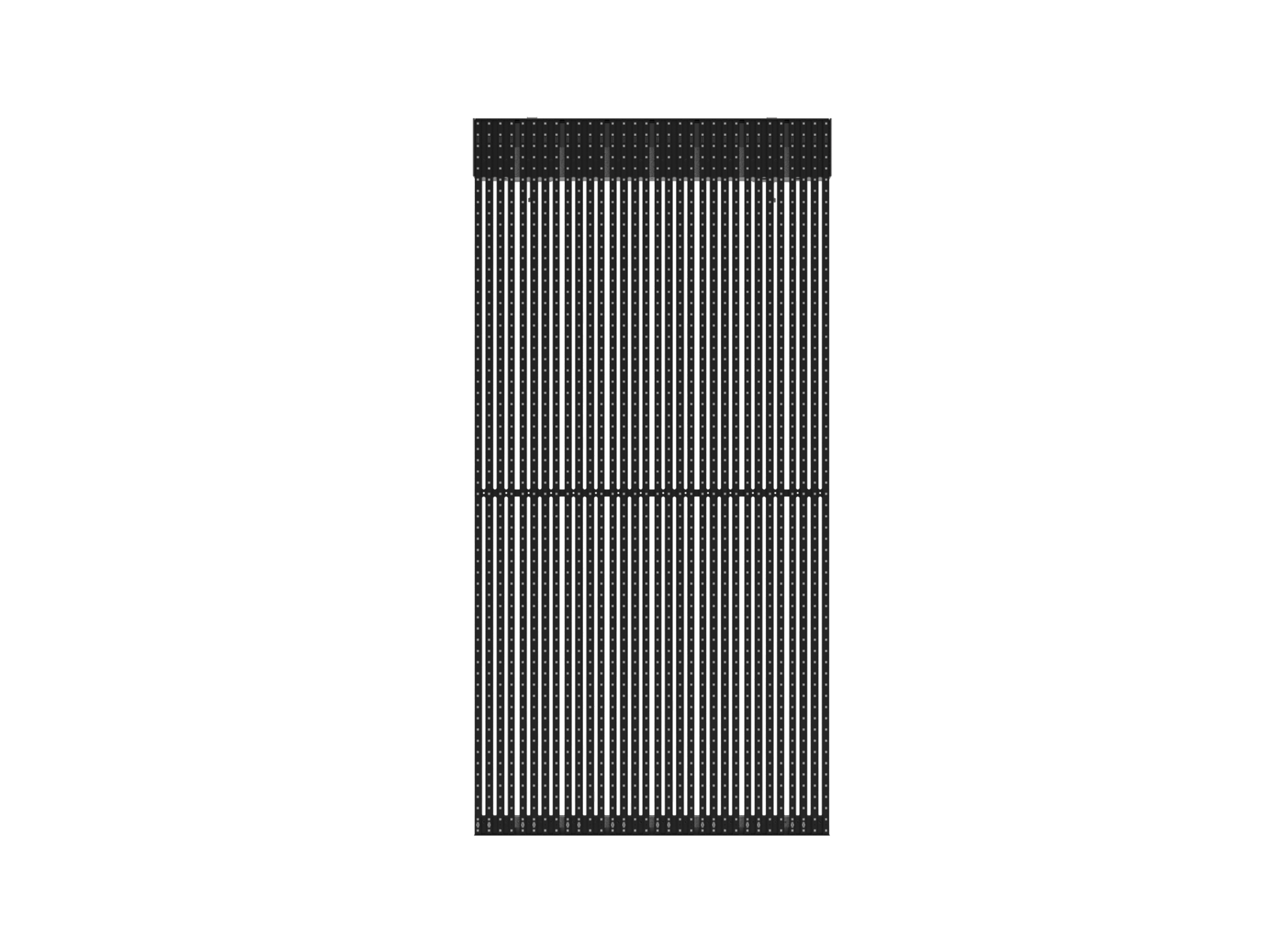

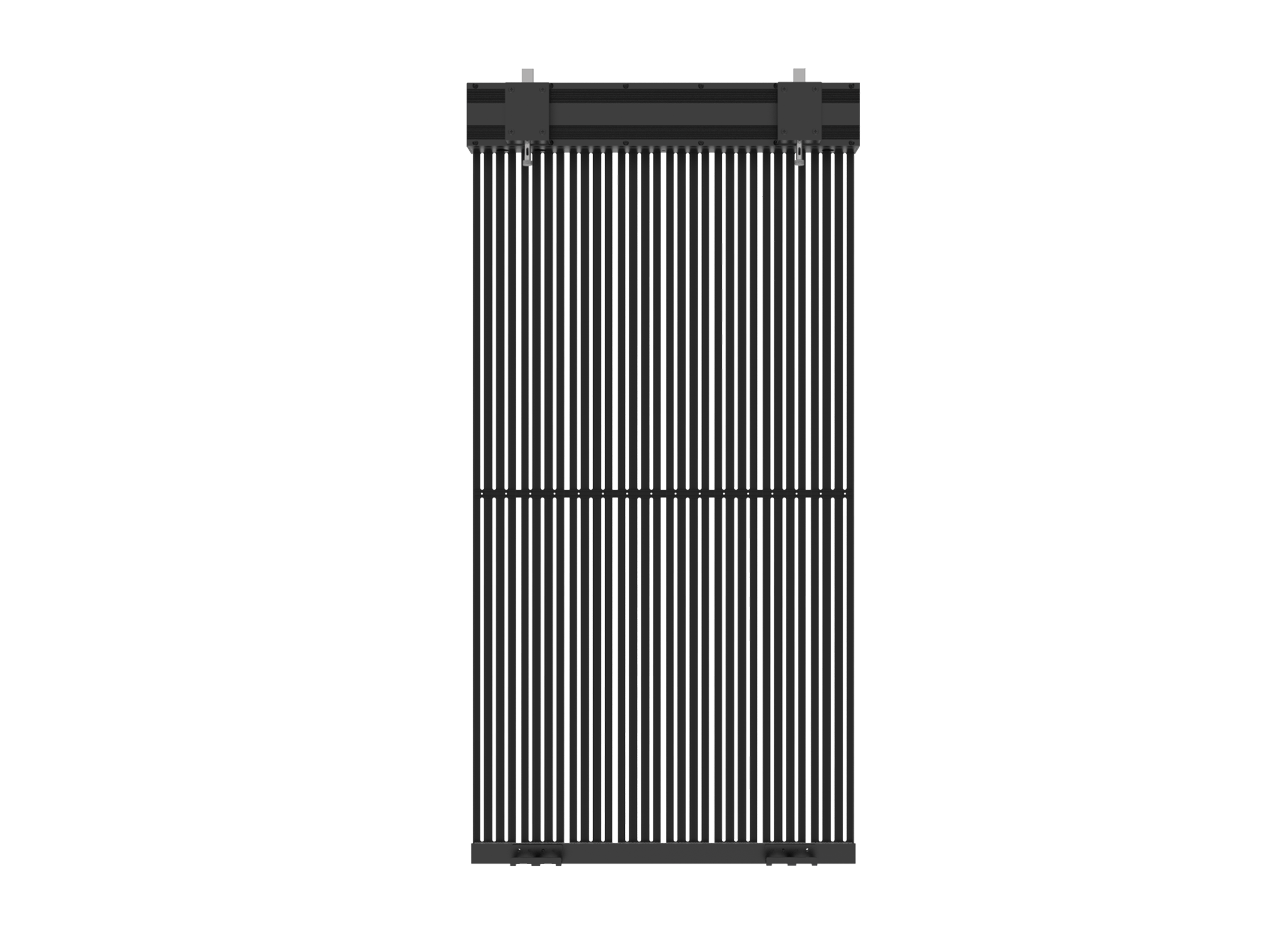

Galaxy銀河系列

SMD表貼格柵屏

尺寸:500x1000mm / 500x500mm

像素間距:P12.5-8.33/ P15.625/ P15.625-31.25/ P31.25-31.25

輕薄

前后維護

應用領域:建筑外墻、建筑屋頂、戶外廣告牌

立即聯系我們

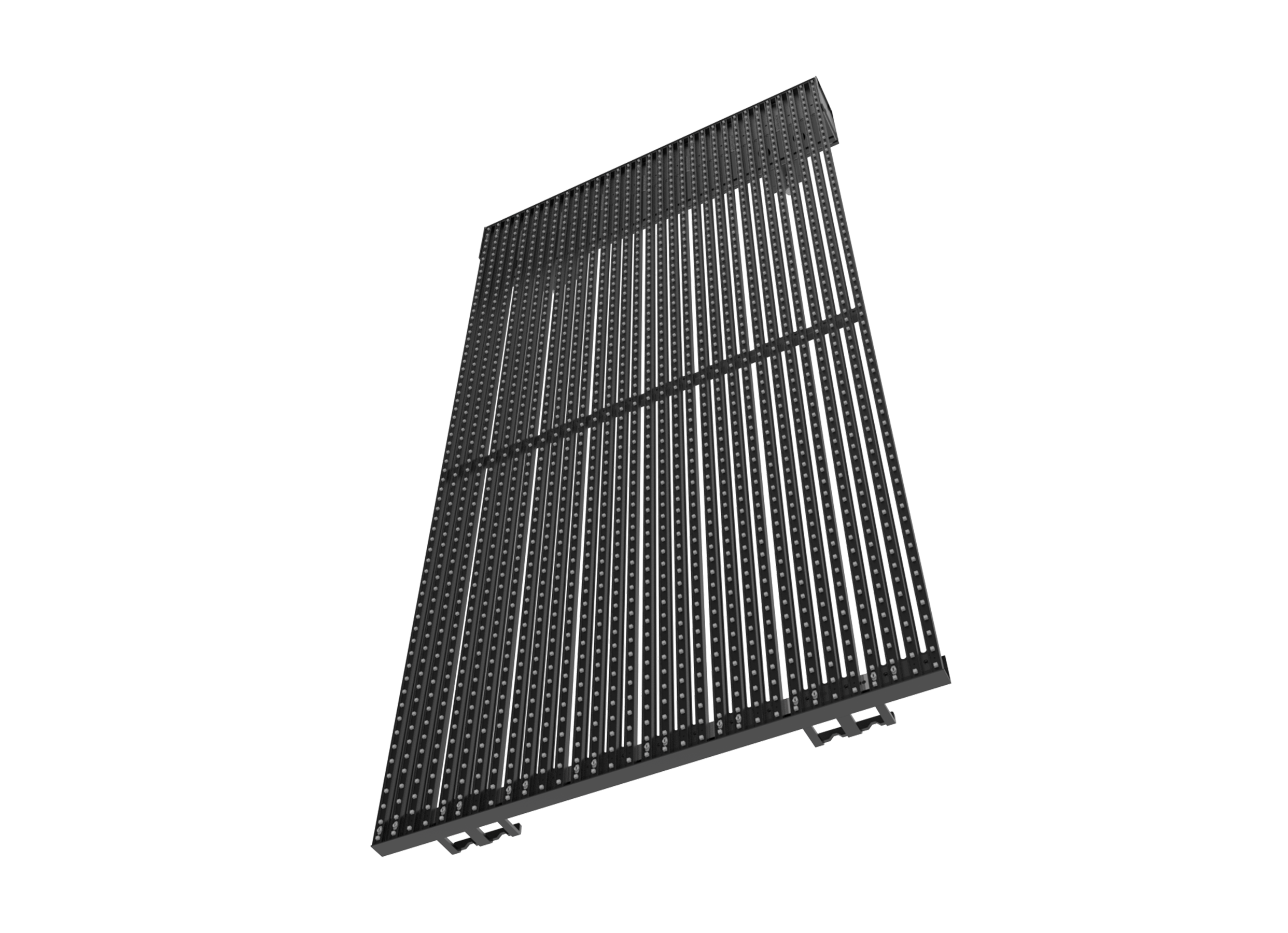

  • 超薄超輕

    無縫一體化框架設計,比傳戶外箱體輕30%-60%,降低結構負荷和安裝成本

    穩定性更高

    LED格柵屏內部線材較少,可降低故障率,提高防火性能

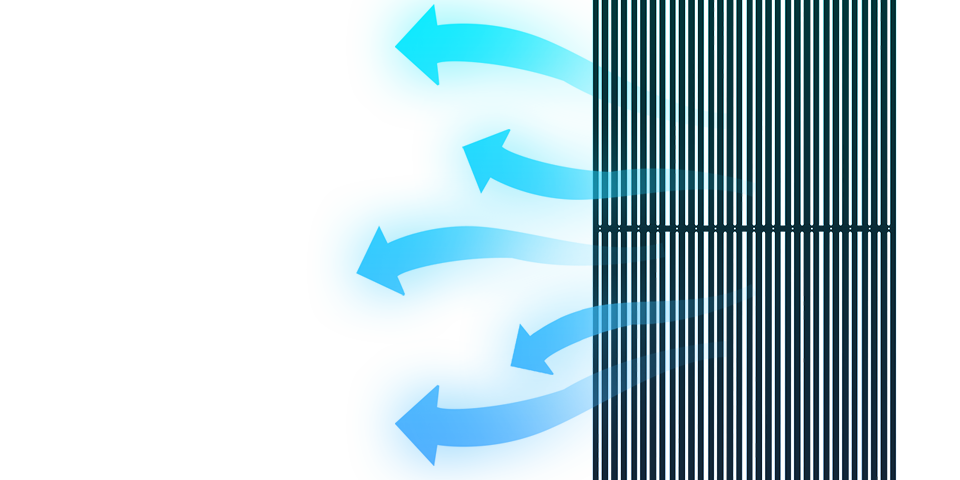

    高透光率

    透光率隨像素間距不同而變化,在25%-70%之間,有效減少風阻,且不影響玻璃幕墻的采光

    IP67防護等級,抗惡劣環境能力強

    一體化灌膠工藝設計,IP67全防護,適應多種戶外極端天氣

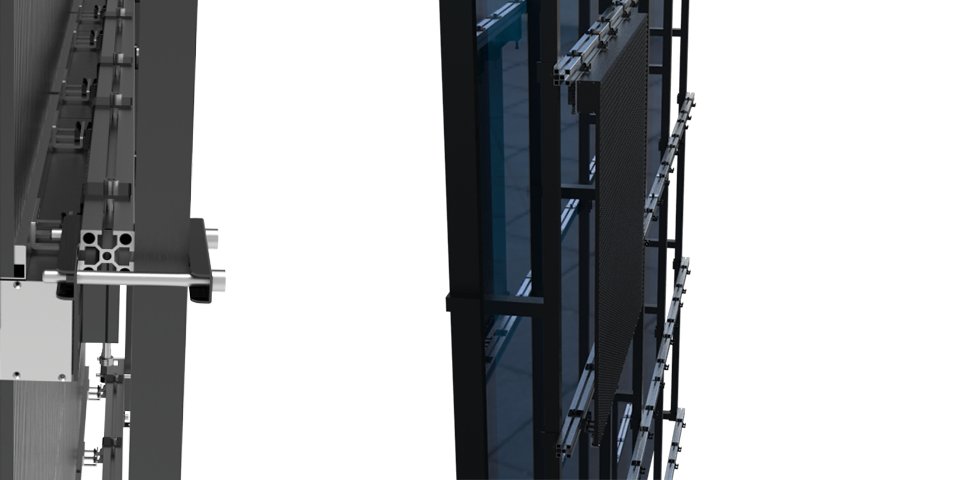

    定制化設計

    適用于不同建筑外墻,可根據建筑立面形狀定制結構,與建筑設計完美匹配

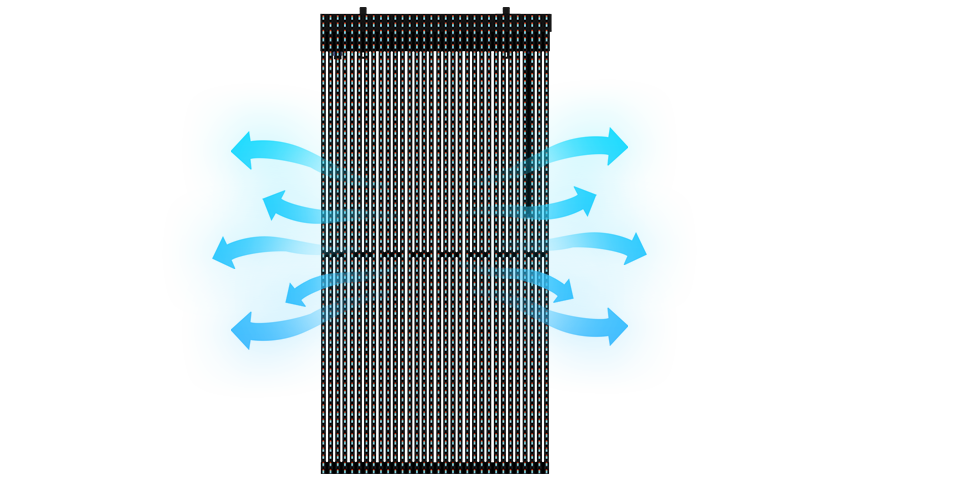

    無風扇設計,無噪音,散熱好

    鏤空設計,結合優質鋁材,增加散熱面積

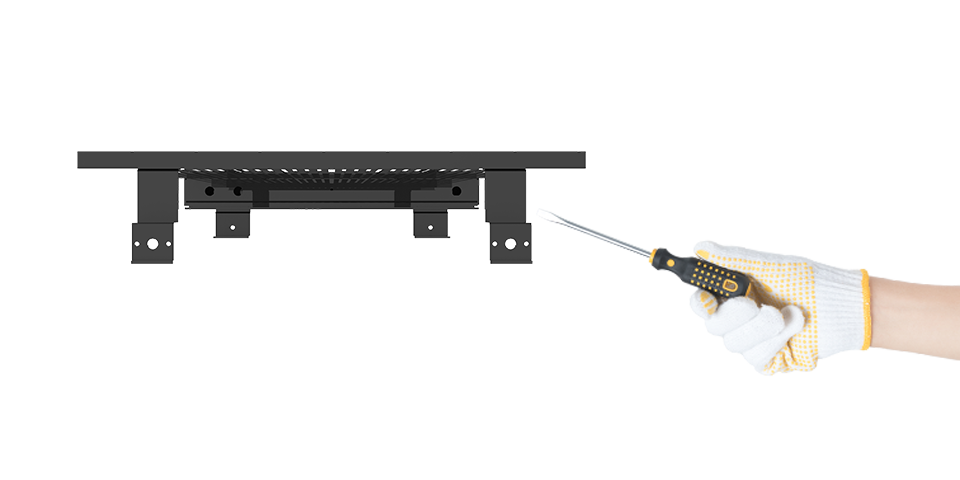

    易于維護,可提供前后維護

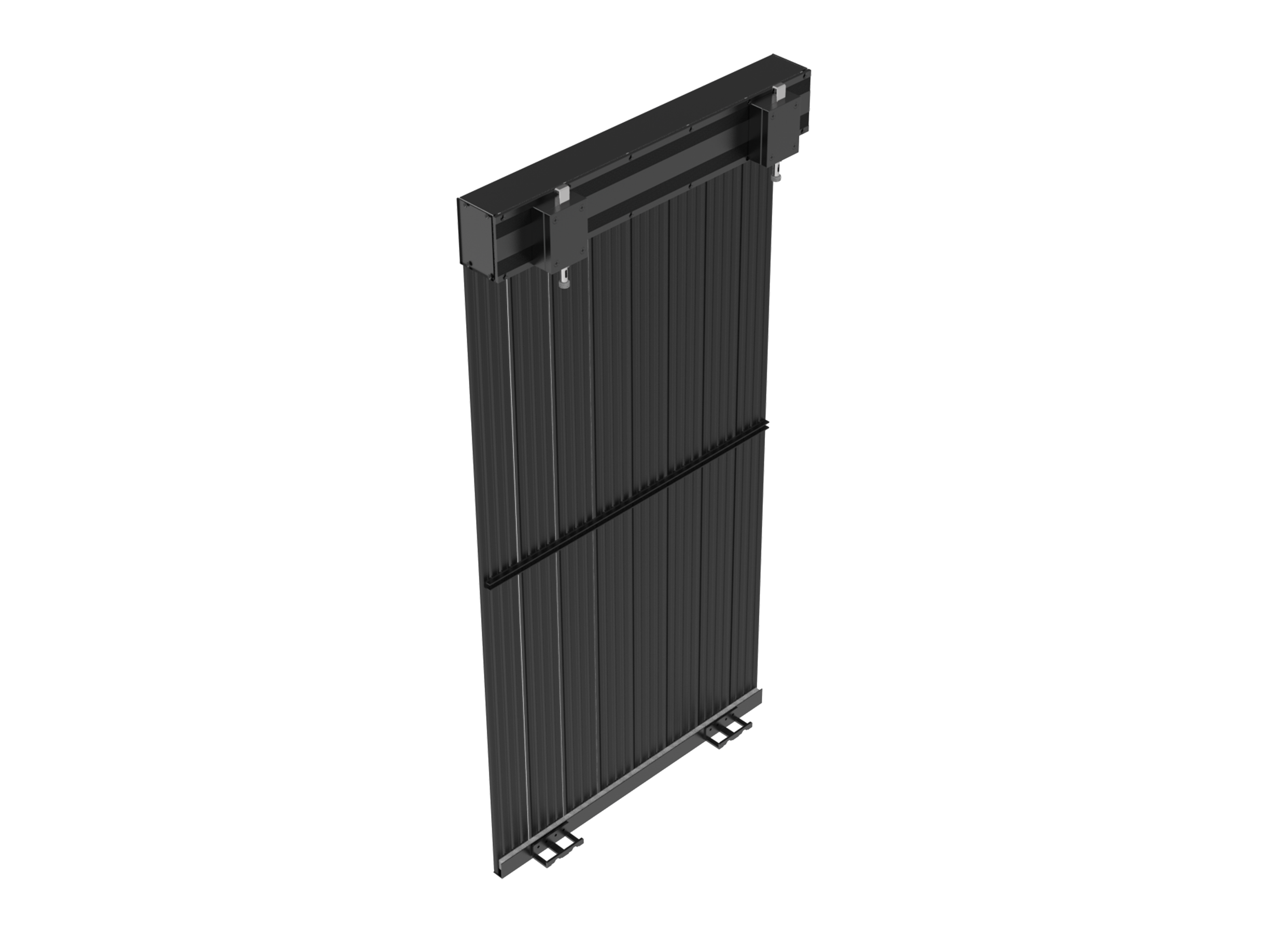

    簡單的安裝結構,支持快速安裝

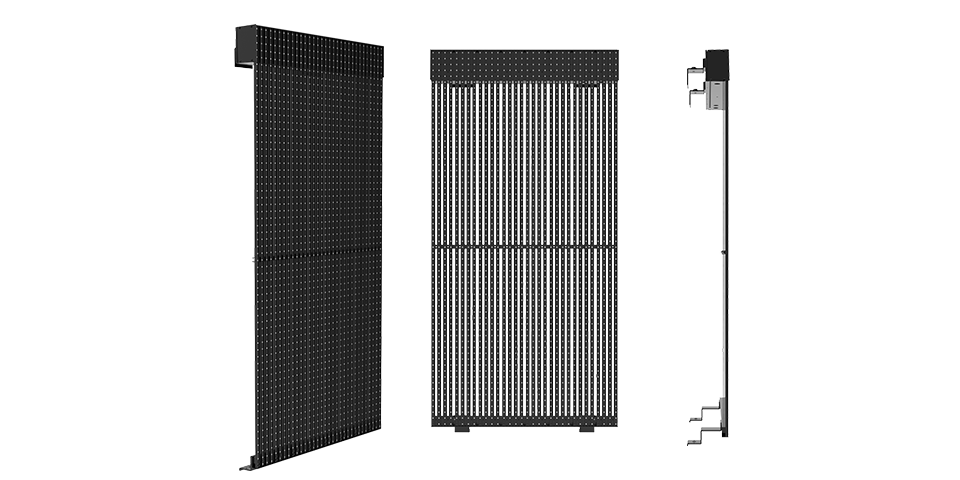

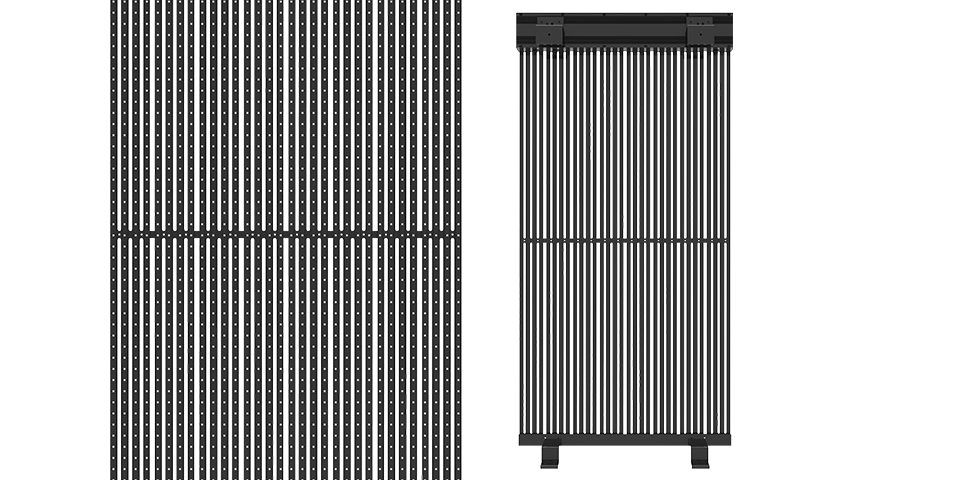

  • Galaxy Series - SMD Mesh Curtain LED Screen
    SMD/DIPSMD
    Pixel Pitch(H*V)(mm)P12.5-8.33P15.625
    Pixel Density(dots/㎡)96004096
    Brightness(cd/㎡)60005000-6000
    LED LampSMD2727
    Cabinet Size500*1000mm (500*500mm /1000*1000mm optional)
    Cabinet Resolution40*12032*64
    Panel Maximum Power(W)400W
    Panel Average Power(W)140W
    Max.Power Consumption(W/㎡)800w
    Power distribution800w
    Transparency Rate25%43%
    Viewing Distance(m)≧12m≧16m
    Weight(kg/㎡)14KG12.4kg
    Viewing Angle(left/right)160°±5°
    Viewing Angle(up/down)140°±5°
    Driving MethodStatic State
    LED Driving MethodMBI5120
    Shell MaterialAluminium Profile & PC mask & Die-casting Lock
    Pixel Composition1R1G1B
    Operating Input Voltage(V)5V
    Control SystemNOVA
    Gray Scale≧14bits
    Brightness Adjustment256 Brightness Levels
    Refresh Rate3840(All products can reach)
    Refresh Frame Frenquncy≧60HZ
    Maintenance WayFront/Rear(Depends on the installation environment)
    Ingress ProtectionIP66
    Continuous Use Time>72h
    Life Span100,000h
    MTBF>10,000h
    Blind Spot Rate<0.01%
    Operating Temperature-20℃~+50℃(Below -20 degrees could be customized)
    Operating HumidityOutdoor 10% - 90%
