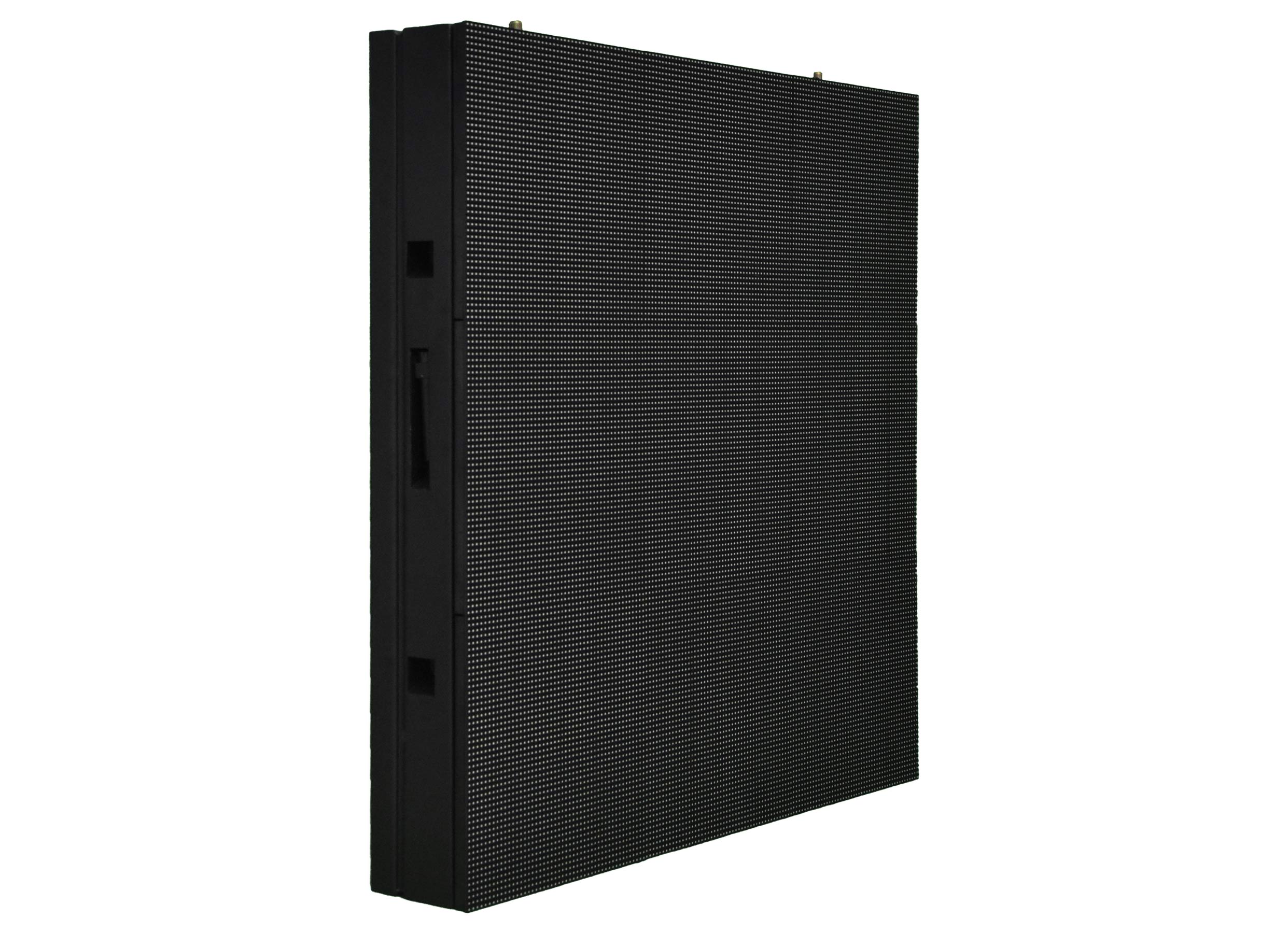

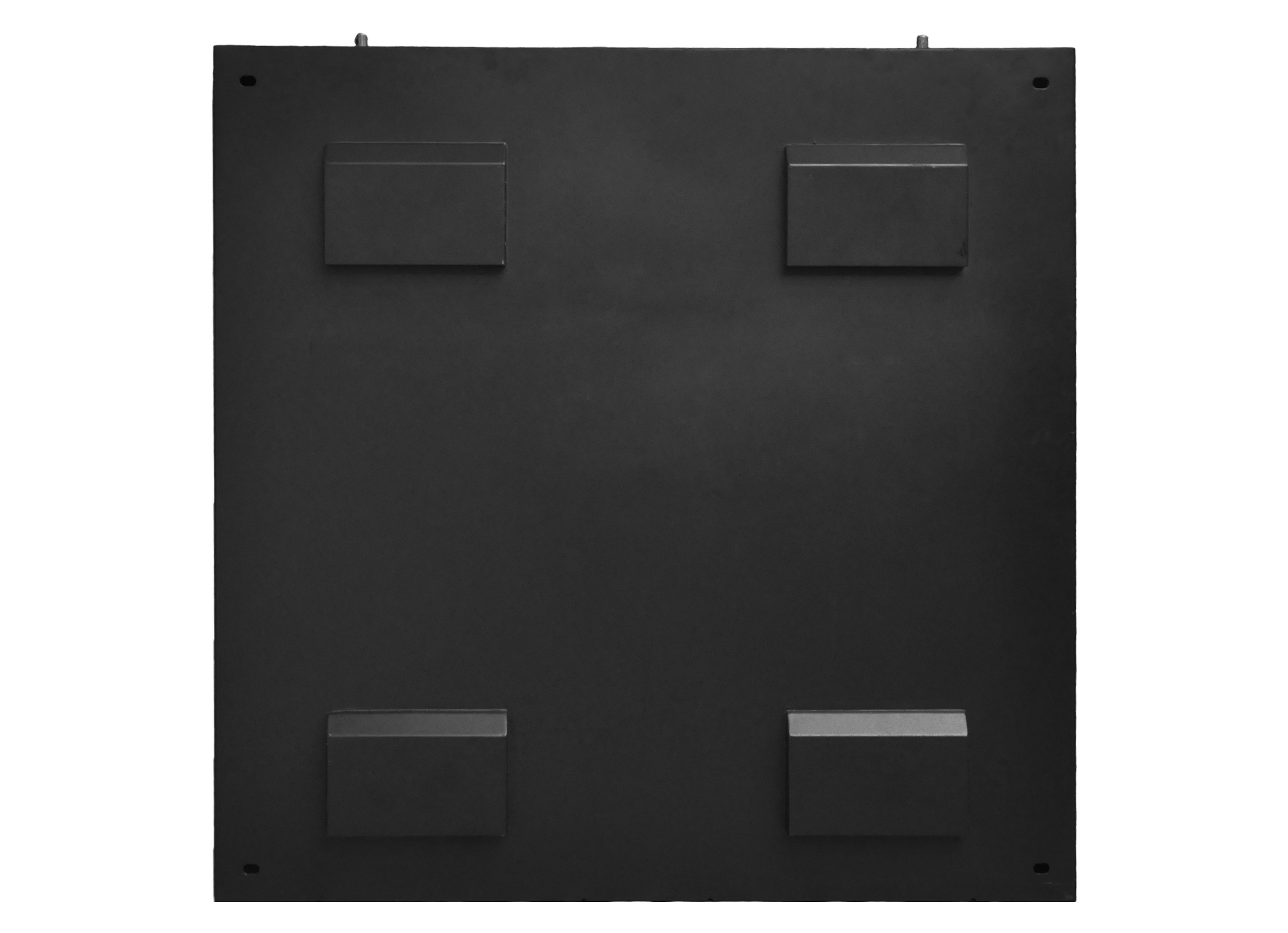

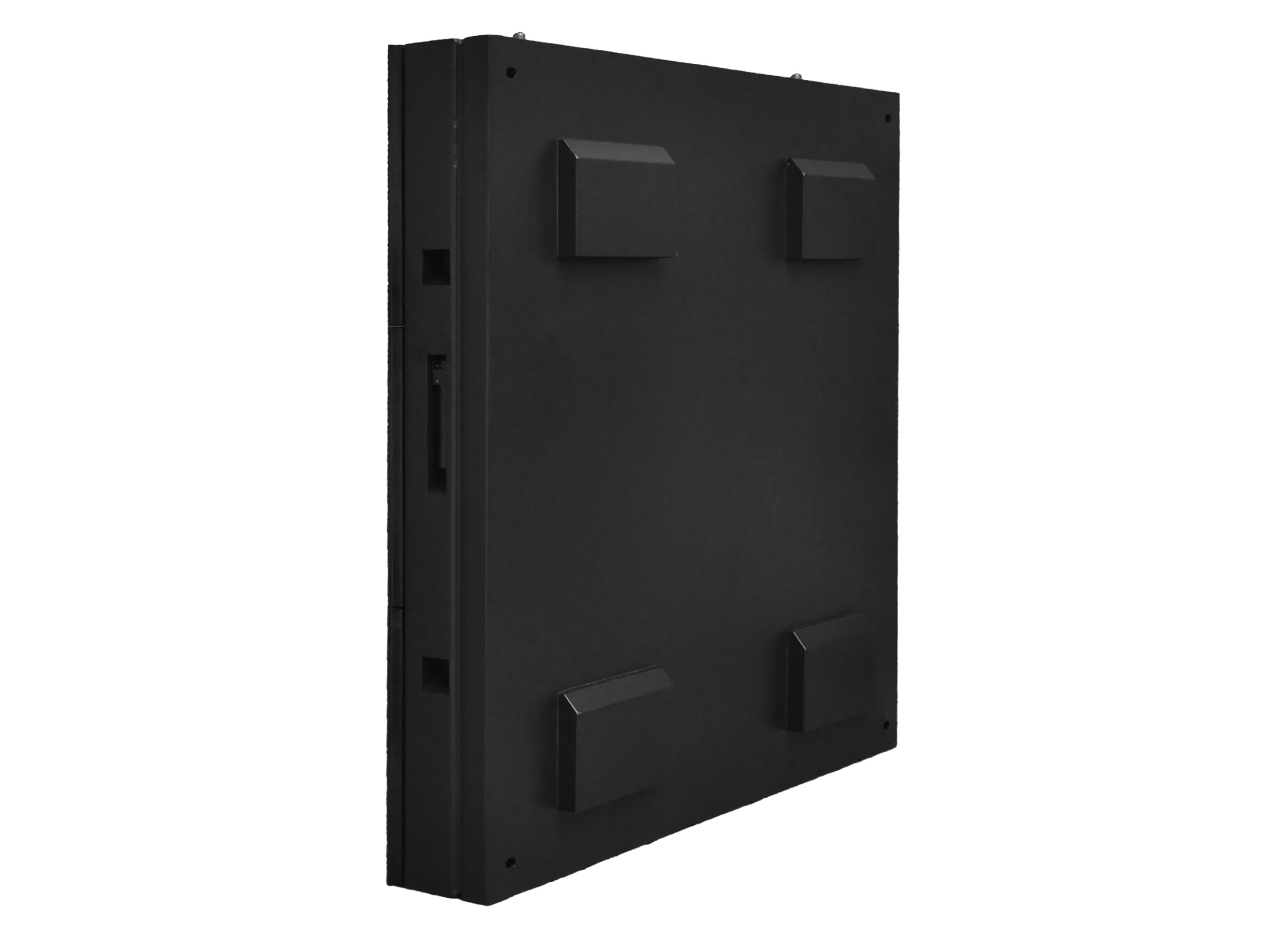

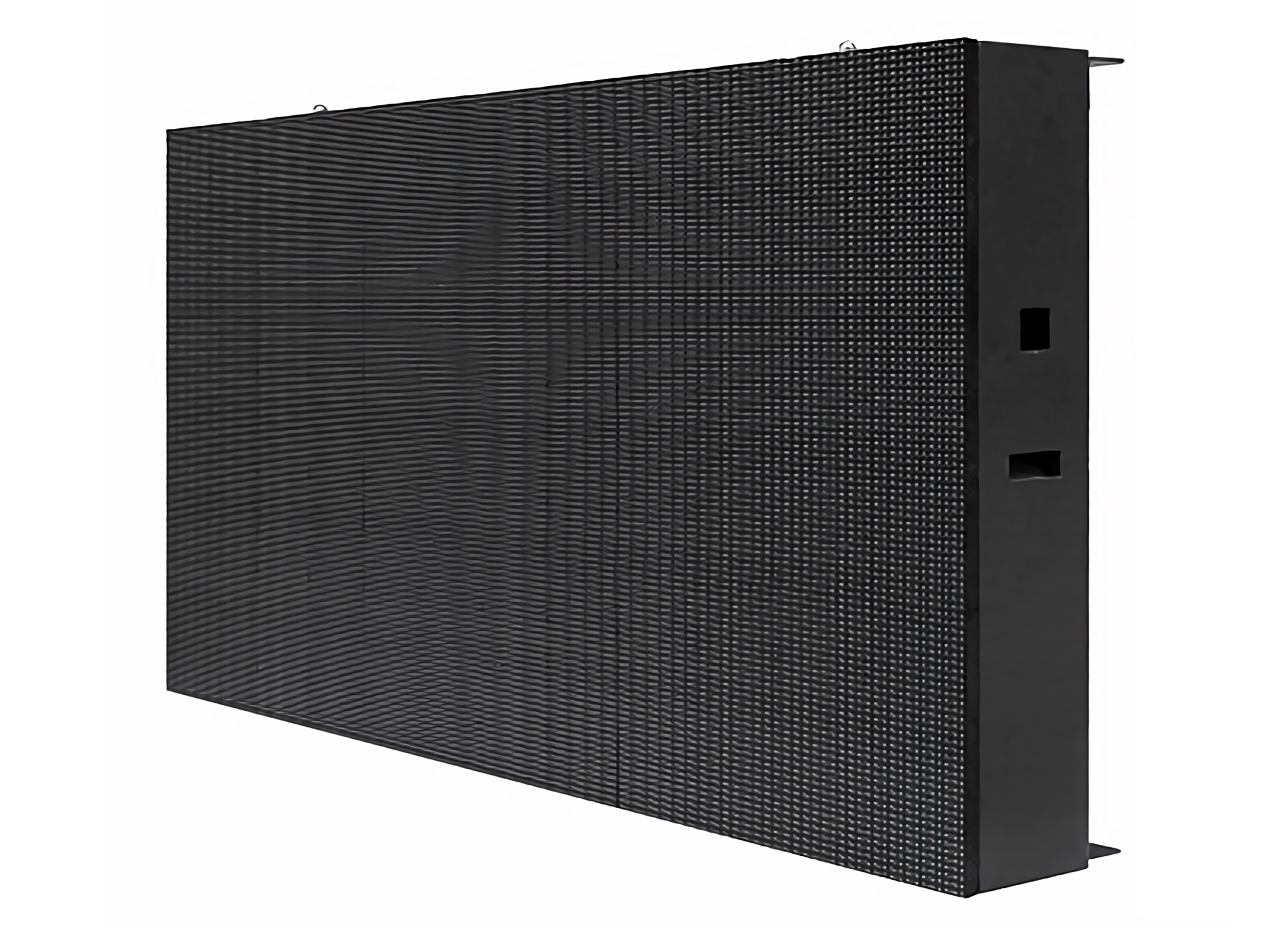

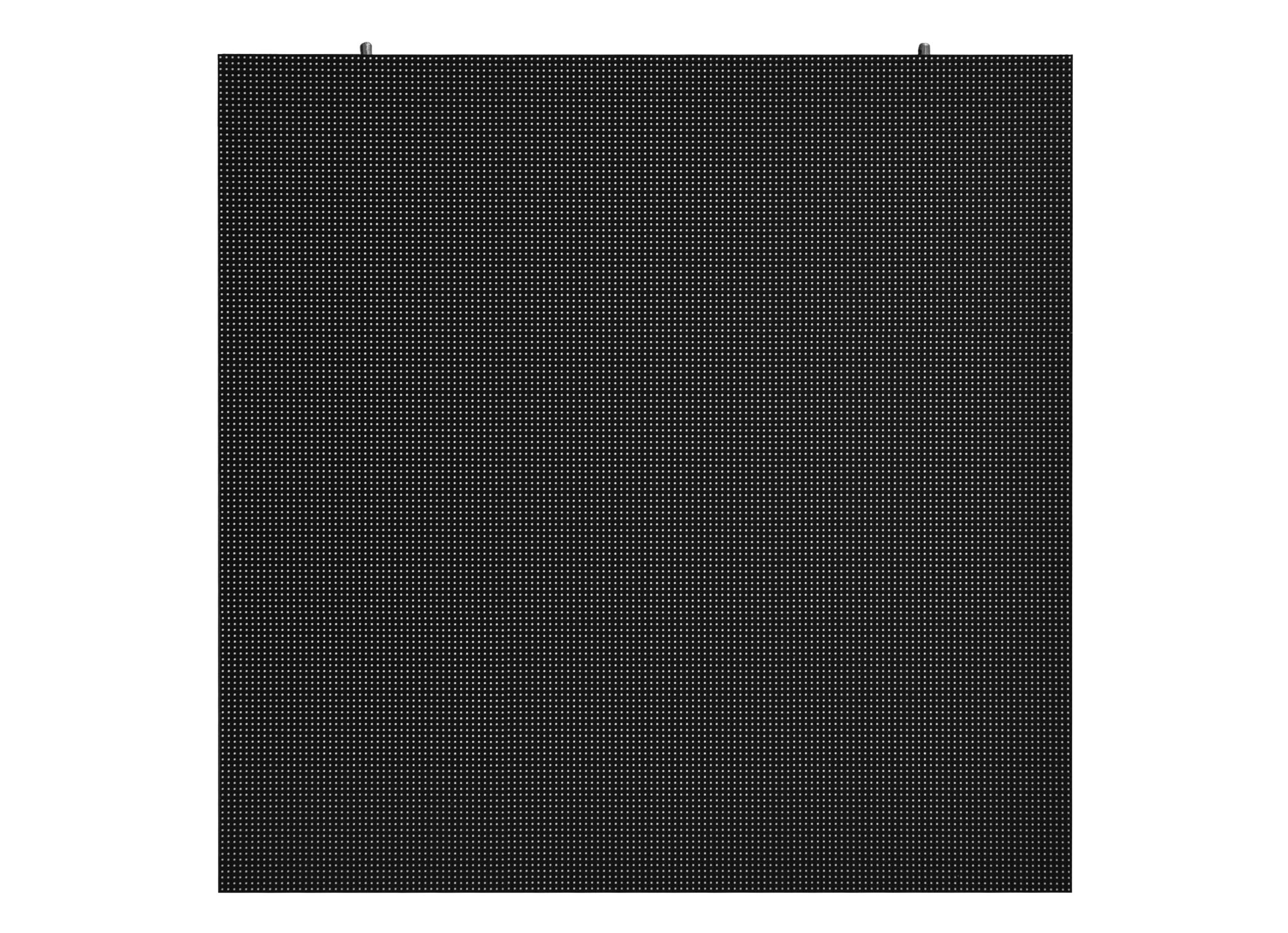

Rock磐石系列

經典戶外前維護LED顯示屏

尺寸:960 * 960mm 和定制

像素間距:P5.33/P6.67/P8/P10/P16/P20

SMD 或 DIP 可選

箱體尺寸自由定制

鐵/鋼/鋁箱體可選

質量穩定,成本更低

應用領域:建筑外墻、建筑屋頂、戶外廣告、戶外標牌等

立即聯系我們

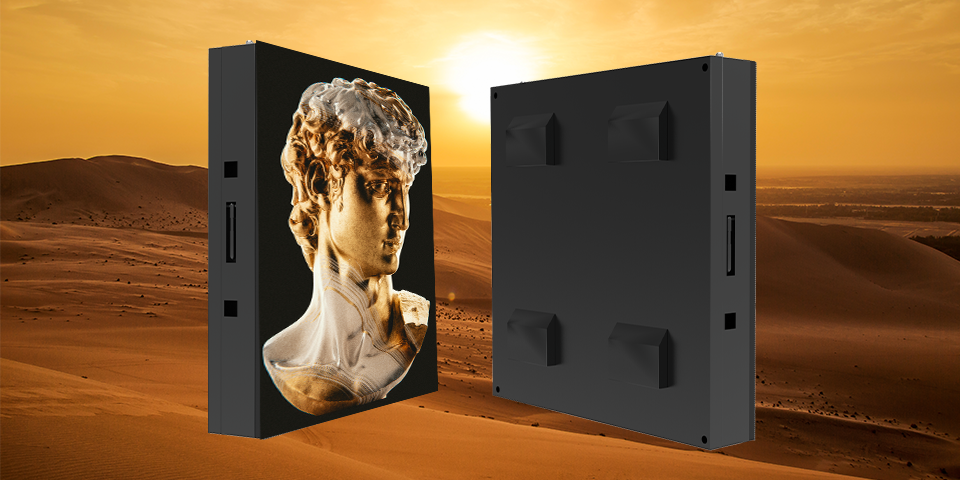

  • 卓越的清晰度,色彩生動

    Rock磐石系列常規采用經典的320x320戶外LED模組和標準的960x960mm箱體,平整度高,同時呈現非凡的視覺效果

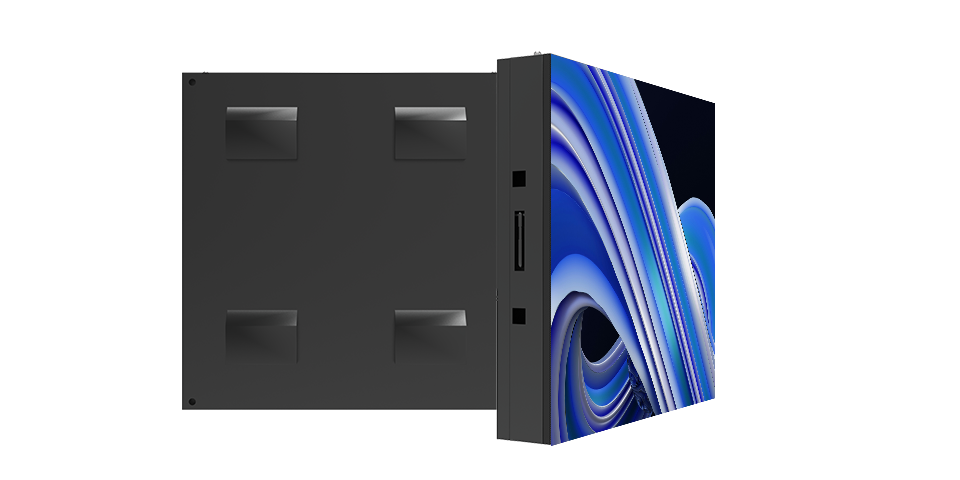

    創新防水設計

    模組后蓋配備防水硅膠圈,為屏幕提供更可靠的防水保障

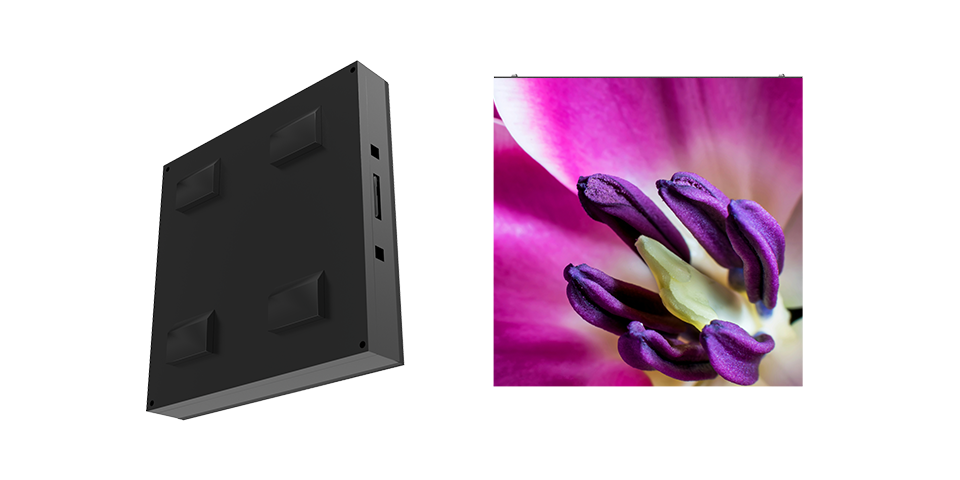

    高亮度

    亮度≥6500nits,陽光下依然清晰顯示

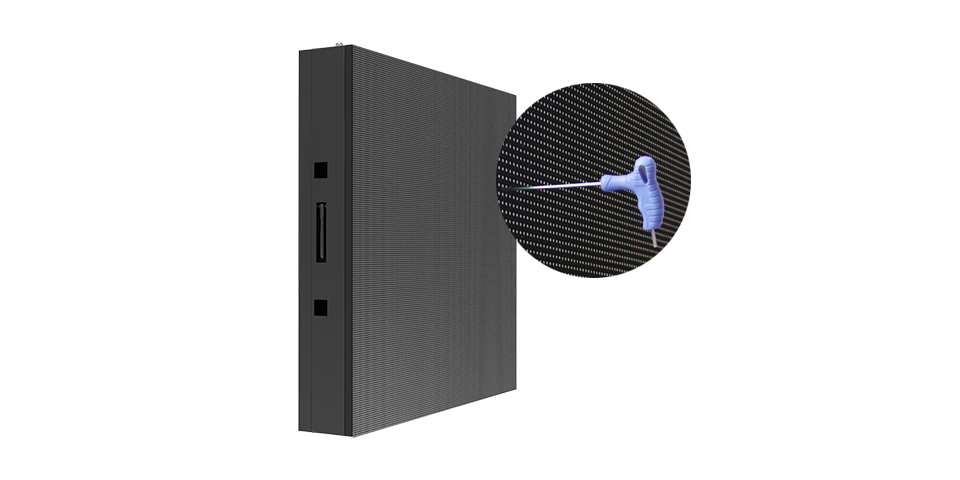

    質量穩定,成本更低

    經典前維護設計,自由定制箱體尺寸,質量穩定,性價比高

    IP65防護等級

    無懼戶外挑戰,Rock磐石系列防護等級達到IP65,可輕松抵御風暴、臺風、鹽霧等惡劣天氣

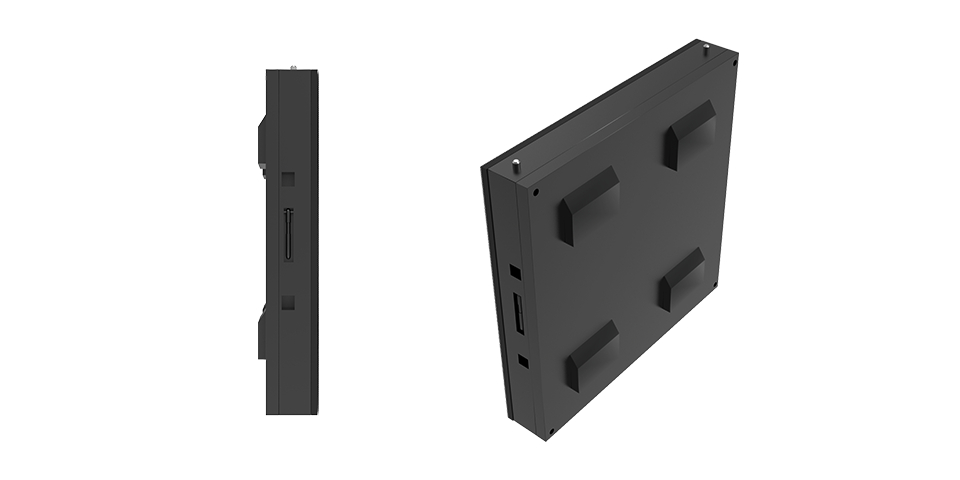

    更輕更薄

    比傳統箱體更輕更薄,且不易變形

  • Rock Series - Classic Outdoor Front Service
    SMD/DIPSMDDIP
    Pixel Pitch(mm)P5.33P6.67P8P10P10P16P20
    Pixel Density(dots/㎡)351562250015625100001000039062500
    Brightness(cd/㎡)5500cd5500cd5500cd6500cd6500cd7000cd6500cd
    LED LampSMD1921SMD2727DIP346
    Cabinet Size(mm)960*960 or customized
    Module Size(mm)320*320
    Module Resolution(dots)60*6048*4840*4032*3232*3220*2016*16
    Viewing Distance(m)≧5m≧6m≧8m≧10m≧10m≧16m≧20m
    Scanning Method1/6 scan1/6 scan1/4 scan1/2 scan1/4 scanStatic StateStatic State
    Cabinet Size(mm)960*960
    Cabinet Resolution(dots)180*180144*144120*12096*9696*9660*6048*48
    Module Maximum Power(W)74425545
    Power distributionr(W/cabinet)830550
    Max.Power Consumption (W/cabinet)660W380W490W405W
    Average Power Consumption (W/cabinet)230W135W170W140W
    Pixel Composition1R1G1B
    Operating Input Voltage(V)5V
    Gray Scale≥14bits
    Brightness Adjustment256 Brightness Levels
    Refresh RateConstant Current IC 1920/High Brush IC 3840
    Refresh Frame Frenquncy60HZ
    Cabinet MaterialDie-casting aluminum/Iron/Aluminum
    MaintenanceFront/Rear
    IPIP65
    Continuous Use Time>72h
    Life Span100,000h
    MTBF>10,000h
    Blind Spot Rate<0.01%
    Operating Temperature-20℃~+50℃(Below -20 degrees could be customized)
    Operating HumidityOutdoor 10%~90%
